Volkswagon Touareg 2011-2017 Rear View Camera

SKU:

Vehicles: Volkswagen

Product type: Back-Up Cameras

Vendor: Radio-Upgrade

Availability:

$369.00

Add to the wishlist

VW Touareg 2011-2017 Rear View Camera fit for:

2011-2017 Volkswagen Touareg RNS850 without factory OEM reverse review camera (Not suitable for RCD550)

Some Touaregs with the RNS850 navigation system do not come equipped with an OEM reverse camera when you buy the car, but you can add this parking interface with a tailgate handle rearview camera. Then you will get the reverse view image on the screen just like an OEM parking system.

 Warning!!! For some reason (we do not know why), the guidelines do not move when you turn the steering wheel on some Touaregs, it only displays the reverse image with fixed guidelines, please be aware of this before you place an order. This is not something that an exchange will fix, we will not be able to exchange your unit simply because the lines are static.

Useful Resources:

Attention:
    1. This product will only work with the RNS850, it does not fit the RCD550.
    2. Your vehicle must have the PDC (Parking Distance Control) system.
    3. Please check the below photo. The PDC box is right on top of the driver side fuse box, towards the windshield. It has three connectors, the one we need is the lowest one (CAN plug), with 16 pins. Your vehicle must have this plug to install our product. Otherwise please do not buy this product.

touarge PDC CAN plug



1. Highlights of this product

* Totally plug and play, the sets will get power from CAN BUS directly. No need to power the camera via reverse light.
* The camera comes with a Sony CCD chip that supports night vision.
* The interface transfer video signal to HU via CAN-BUS, it will not affect the original functions, just like the OEM reverse-view camera.
* Display accurate parking guidance lines.
* Automatically display reverse image when you shift the gear.


2. Interface Accessories


3. Sony CCD Camera Special for Touareg

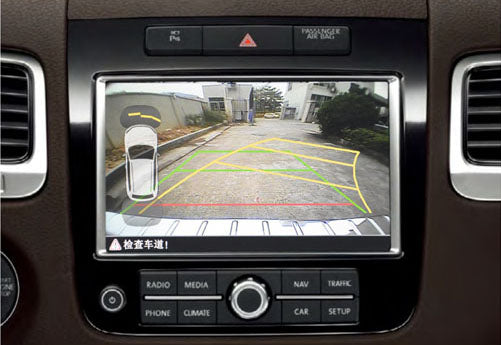

4. Installation Effect




5. Product video




6. Wiring Diagram

touareg camera wiring diagram




7. Installation
