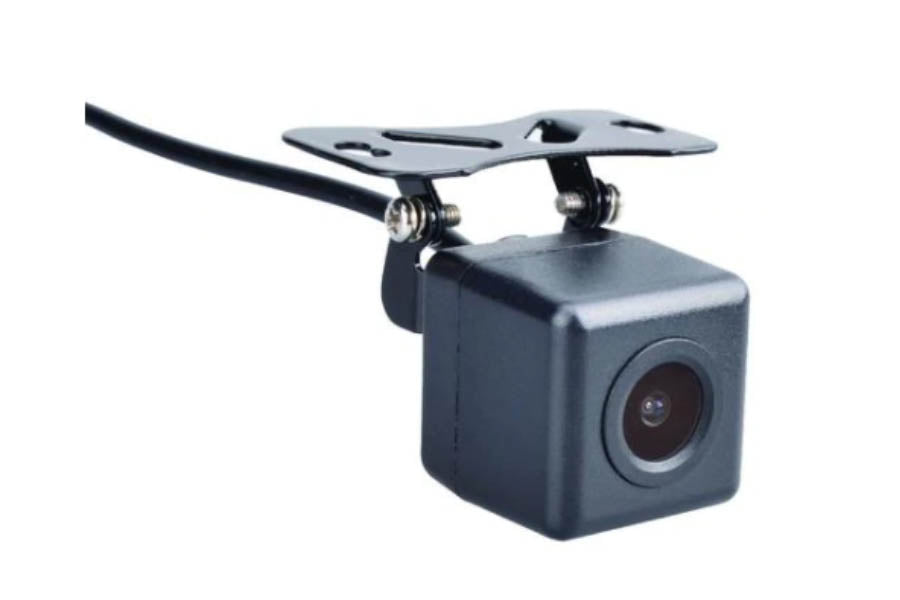

Universal Reverse Back-Up Camera
This camera can be fitted to any vehicle regardless make, model, year and manufactured country.
Rear view camera is one of the best parking assistance devices providing you wide field of view and colourful image.
- Display Guard Line on the reverse image
- Automatically display reverse image when you put the gear in the reverse
- Replace one of the original license plate lampshade, no need to drill hole
- Designed is reference to the original car style, installation is simple and beautiful, totally plug and play
- The original Sony CCD chip, clear and stable image
- With wide-angle glasses lens, wide viewing angle without dead corner
- Using a unique production process, waterproof tight durability
- Multiple circuit protection design, stable and reliable quality
FUNCTIONAL SPECIFICATIONS
| Image Sensors | SONY CCD lens | |
| IP rating | IP68 | |
| TV System | PAL or NTSC | |
| Effective Pixels | 628×582/628×492 | |
| Sensing Area(mm) | 4.9×3.7 | |
| Resolution(TV Line) | 480 | |
| Horizontal Sync Frequency (KHZ) | 15.625/15.734 | |
| Vertical Sync Frequency (HZ) | 50/60 | |

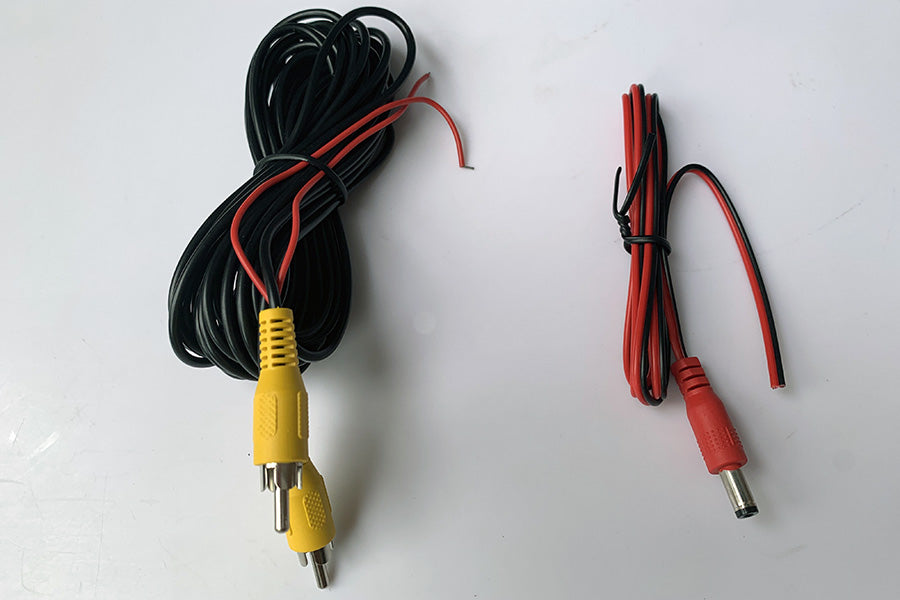

| Video output | 1Vp-p,75Ohm,RCA male | |
| Gamma Consumption | 0.45 | |
| AGC | Auto | |
| BLC | Auto | |
| S/N Ratio | Betterthan 48dB | |
| Lens Angle (Deg.) | 170°diagonal | |
| Current Consumption (mA) | 200 | |
| Power Supply (DCV) | 12V | |
| Operating Temperature (Deg.C) | -20~+70(RH95%MAX.) | |
| Storage Temperature (Deg.C) | -40~+80(RH95%MAX.) | |
| Size | Same as the number plate lampshade of the original car | |
| LED lamp | Inside the camera if camera has built-in LED light | |
| Current Consumption (mA) | 30~60mA |
