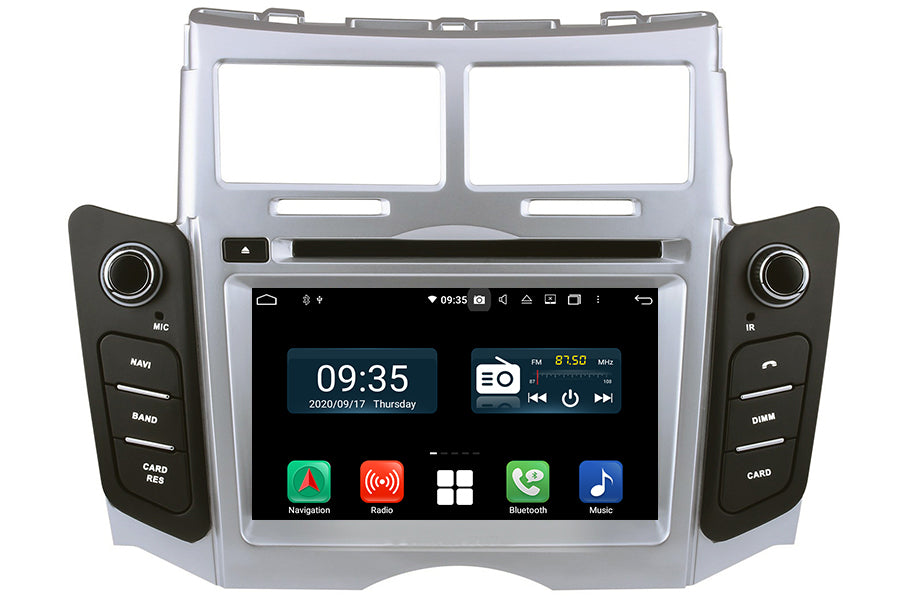

Toyota Yaris Aftermarket Navigation Car Stereo (2007-2011)



Vehicles: Toyota

Product type: Car Stereo

Vendor: Radio-Upgrade



Toyota Yaris 2007-2011 Aftermarket Navigation Car Stereo has a 6.2 inch touch screen, it is designed to replace stock radio system, totally plug and play, no need cut wires, free GPS navigation map preloaded.

Toyota Yaris 2007, 2008, 2009, 2010, 2011

Note above year range is for your reference only. Check with us if you are not sure about fitness.





  • 16:9 HD digital panel(800*480 digatal touch screen)
  • Built-in DVD Player compatible with DVD, VCD, CD, MP3, MPEG4, CD-R, WMA and JPEG playbacks
  • Built-in Navigation system WinCE 6.0 OS
  • Built-in FM/AM Radio, with RDS receiver
  • Built-in Bluetooth, can support hands-free phone and A2DP music( You can make hands-free calls or listen music through Bluetooth )
  • Built-in Two SD(HC) card slots, one for GPS, one for multimedia (video, music, photo etc.), capacity as large as 32GB
  • Built-in USB port on the rear/front panel
  • Built-in AUX-IN, can support the rear seat DVD player
  • Built-in AUX-OUT, can support roof DVD player and headrest screen
  • Support PIP (Picture in Picture) Function( video clip view operation video)
  • Support Dual Zone Function: enjoy video/music/radio while navigation
  • Support original Steering Wheel Control(CANBUS decoder is included with this unit, no need to buy anything else to make the swc work.)
  • Support iPod music play and control
  • Support 20 virtual discs changer (20 disc music can be memory in the unit while you listening the music)
  • Support Auto Rearview function, you can add a rearview camera
  • Support Parking Radar(sensor), automatic reversing rearview
  • Support TPMS System, you can add an extra TPMS System
  • Support Adjustable button background light: blue, red and purple, light can be turned off
  • Support Five languages for choice: English, Espanol, Italian, Deutsch, Francais
  • Support Digital TV (DVB-T, ATSC, ISDB-T) optional


  • Video Systems: PAL, NTSC, AUTO
  • Media Formats: DVD, DVD-R, DVD-RW, HDVD, DVCD, MP3, MP4, CD-R, CD-RW, VCD, DIVX(MPEG-4), etc.
  • Audio Out: 4 x 52w, 4 Channel line out(FL,FR,RL,RR)
  • EQ Control: Bass, Treble, Balance and Fade
  • Auto Memory: the parameter and position can be memorized and restored automatically
  • Radio Receiver: High sensitive FM/AM tuner 50 stations restorable
  • AM Frequency Range: 522-1620KHz 9KHz / 530-1620 10KHz (Worldwide)
  • FM Tuning Range: 87.5~108.0MHz (Worldwide)
  • USB 2.0 port for Multimedia
  • GPS and Multimedia support SDHC card as high as 32GB
  • Remote Control: Full function of remote operation
  • Power Supply: DC 10-14.6V
  • Working Temperature(centidegree): -20 ~ 80

Navigation System:

  • Operation system: WINCE 6.0 OS
  • Chipset: SIRF ATLAS IV
  • CPU: 1GHZ
  • Storage memory: 512 MB
  • Power Speci: DC12V, Current < 500mA
  • Consumption: 4.5W(12V/360mA), normal power consumption 3W(12V/250mA)
  • Support map: Tomtom, iGO, Papago, Route66. etc.
  • GPS dual zone function: navigation while listen to music at the same time
  • Navigation voice and display language: iGO(EN, Deutsch, Fransais, Espanol, Nederlands, Magyar, Italiano, Cesky,Dansk, Norsk, Svenska, Portuguese, Finland, Romanian, Polski, Pyccknn)

What\'s included:
1 x Power cable
1 x GPS antenna
1 x Radio antenna converter
1 x iPod cable
1 x USB cable
1 x CAN BUS decoder
1 x Remote controller
1 x Radio removal keys
1 x Users manual

Fitness & Installation:
Our unit is specially designed to replace the stock radio system, it is with the same harness as stock one, totally plug and play, nothing else is needed to buy to make it work.
If you\'re not mechanically or electronically inclined, we highly recommend that you bring this unit to your local stereo shop and have it professionally installed.
