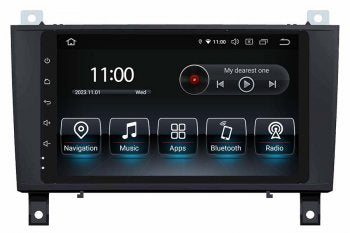

This aftermarket Navigation DVD Player is specially designed to upgrade Mercedes-Benz SLK-Class(R171) factory basic head unit or navigation head unit. It has the same harness and plugs as the original radio, plug-and-play. After install this new unit, you will get an intelligent entertainment system with touchscreen/Navigation/FM/AM/USB/Wi-Fi/AUX-IN/Bluetooth phone call/Bluetooth music/DAB+(tuner is optional)/rearview camera(camera is optional)/Apple CarPlay/Android Auto/Digital TV(TV tuner is optional)/OBD(device is optional)/Google Play Store etc.
Mercedes-Benz SLK-Class(R171) 200/280/300/350/55AMG 2004, 2005, 2006, 2007, 2008, 2009, 2010
1. This radio is compatible with the factory Mercedes-Benz backup camera. Please choose "My car has factory backup camera" if your car equips with factory backup camera, we will include the adapter.
2. This radio is not compatible with the factory 6 CD changer, but our product supports USB music/video playback, you do not need the old 6 CD changer anymore.
3. This radio does not have Sirius/XM radio feature, but you can download Sirius/XM application on your mobile phone and listen to it through Bluetooth.
4. This radio is not compatible with Mercedes-Benz SLK-Class(R171) Japan model. Because the connectors behind the radio(Japan model) are totally different from head unit from other countries.
NOTE If you have any of the above 2 head units (NTG1 Comand APS or NTG1 Audio 50 APS) then the head unit is separate from audio gateway/sound amplifier on your car. The speaker system will be powered by a fiber optic (MOST) amplifier(audio gateway) located under passenger foot rest. Head units which are run by MOST will have a pair of orange plastic fiber-optic cables on the rear and no speaker outputs. The majority of cables such as speaker wires, power wires and the radio antenna are found under passenger foot rest at the original amplifier. This means that to integrate this aftermarket unit with the car you must run an extension kit to the speaker/power wires under the passenger's seat. Installations requiring the extension are more time consuming than for cars that do not require it, however it is still relatively straight forward. The extension kit is optional, please add it from the drop-box. Check more info about the Extension cord for Mercedes-Benz aftermarket head unit. Note that only four car speakers work after install this kit because the original amplifier/audio gateway is passed and it uses our radio's internal 4*45W amplifier.
NOTE If you have the NTG1 Audio 20 APS/NTG2.5 Comand APS/NTG2.5 Audio 20/50 APS/MCS-II as shown in above photo WITHOUT external Harman/Kardon Logic 7 Surround Sound System in your Mercedes-Benz then the Head Unit and audio gateway are in one component. This aftermarket head unit will be a direct plug-and-play replacement using the standard wiring adapter lead provided.
If you have the NTG1 Audio 20 APS/NTG2.5 Comand APS/NTG2.5 Audio 20/50 APS/MCS-II as shown in above photo WITH external Harman/Kardon Logic 7 Surround Sound System in your Mercedes-Benz then the head Unit is separate from the sound amplifier. Then this aftermarket head unit will be a direct plug-and-play replacement using the standard wiring adapter lead provided. But you also need the Fiber Optic(MOST) adapter for Mercedes-Benz. The adapter is optional, please add it from the drop-box. It makes this new radio work with the original Harman/Kardon Logic 7 Surround Sound System and ALL car speakers work as before. Check more info about the Fiber Optic(MOST) adapter for Mercedes-Benz.
This product is NOT compatible with Mercedes-Benz SLK-Class(R171) Japan model. Because the connectors behind the radio(Japan model) are totally different from head unit from other countries.
Please send a photo of the dashboard(radio system) and VIN of your car to us if you are not sure about fitness. We will check what items you need to buy for your car.
|1.6GHz Cortex-A53 64-bit 8-core
|8-inch 1024*600 resolution capacitive touchscreen
|Two USB ports(can upgrade to three USB ports)
|Built-in sound amplifier, 4*45W
|RCA audio output
|Front-Left, Front-Right, Rear-Left, Rear-Right, and Subwoofer(RCA port)
|One set A/V input(RCA port)
|One camera input(RCA port)
|External GPS receiver
* Free maps preload and free updates
* Not Support DVD/CD
* Built-in AM/FM tuner
Apple CarPlay* Support Apple Carpaly with iPhone
Bluetooth* Hands-free phone call
* Load the phone book from your mobile phone
* Bluetooth music stream A2DP
* Internal Microphone
* Compatible with iPhone & Android mobile phones
Android Auto* Support Android Auto with Android phone
Backup Camera(camera is optional)
* Display reverse image automatically
* USB music, video, photo, and ebook
TV(TV tuner is optional)
* Support ATSC
DVR(camera is optional)
* support forward video recorder while driving
* Support original steering wheel control
AUX* One channel A/V input for external device
Google Play* Android Market provides numerous apps download,
such as Skype/MSN/Youtube/Twitter/Facebook
free download as much as you need
