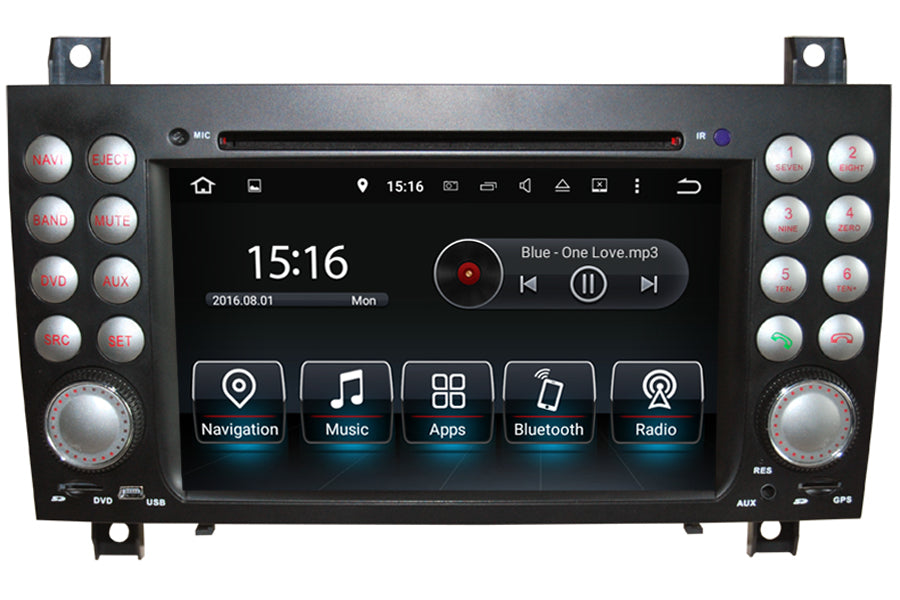

Mercedes-Benz SLK-R171 Aftermarket Navigation Car Stereo (2004-2010)
This aftermarket Navigation DVD Player is specially designed to upgrade Mercedes-Benz SLK-Class(R171) OEM basic radio system or OEM navigation head unit. It has the same harness and plug as original radio, totally plug and play when install. After install this new unit, you will get an intelligent entertainment system with Touchscreen/Navigation/FM/AM/USB/SD/WiFi/AUX-IN/Bluetooth phone call/Bluetooth music/DVD playback/DAB+(device is optional)/rear view camera(device is optional)/Apple CarPlay(device is optional)/TV(device is optional)/OBD(device is optional)/Google Play etc.
Fit for
Mercedes-Benz SLK-Class 200/280/300/350/55AMG(R171) 2004, 2005, 2006, 2007, 2008, 2009, 2010
|
|
 |
| NTG1 Comand APS |
NTG1 Audio 50 APS |
|
If you have any of the above 2 head units (NTG1 Comand APS or NTG1 Audio 50 APS) then your speaker system will be powered by a fiber optic (MOST) amplifier in the rear of the vehicle. Head units which are run by MOST will have a pair of orange plastic fiber-optic cables on the rear and no speaker outputs. The majority of cables such as speaker wires, power wires and the radio antenna are found in the rear of the car at the original amplifier. This means that to integrate this aftermarket unit with the car you must run an extension kit to the speaker/power wires in the rear. Installations requiring the extension are more time consuming than for cars that do not require it, however it is still relatively straight forward. The extension kit is optional, please add it from the drop-box. Note that only four car speakers work after install this kit. |
|
|
|
 |
| NTG1 Audio 20 APS | NTG2.5 Comand APS |
 |
|
| NTG2.5 Audio20 APS | NTG2.5 Audio 50 APS |
| If you have the NTG1 Audio 20 APS/NTG2.5 Comand APS/NTG2.5 Audio 20 APS/NTG2.5 Audio 50 APS as shown in above photo WITHOUT external Harmon/Kardon fiber optic audio system in your Mercedes-Benz SLK-Class then this aftermarket head unit will be a direct plug-and-play replacement using the short wiring adapter lead provided. | |
| If you have the NTG1 Audio 20 APS/NTG2.5 Comand APS/NTG2.5 Audio 20 APS/NTG2.5 Audio 50 APS as shown in above photo WITH external Harmon/Kardon fiber optic audio system in your Mercedes-Benz SLK-Class then this aftermarket head unit will be a direct plug-and-play replacement using the short wiring adapter lead provided. But you also need the Fiber Optic(MOST) adapter for Mercedes-Benz. The adapter is optional, please add it from the drop-box. It remains the original Harmon/Kardon audio system, ALL car speakers work as before. Check more info about the Fiber Optic(MOST) adapter for Mercedes-Benz . |
|
Please send a photo of the dashboard(radio system) and VIN of your car to us if you are not sure about fitness. We will check what items you need to buy for your car.
Installation photo
| Operating System | Android 10 |
| Chip | 1.6GHz Cortex-A53 64-bit 8-core |
| RAM | 4GB |
| Capacity | 64GB |
| Display | 7 inch 1024*600 resolution capacitive touchscreen |
| Network | Wi-Fi |
| SD/TF card | Two card slots |
| USB port | Two USB ports(can upgrade to three USB ports) |
| Amplifier | Built-in sound amplifier, 4*45W |
| RCA audio output | Front-Left, Front-Right, Rear-Left, Rear-Right and Subwoofer(RCA port) |
| AUX input | One set A/V input(RCA port) |
| Camera | One camera input(RCA port) |
| Microphone | Internal Microphone |
| GPS receiver | External GPS receiver |
|
|
Navigation * Free maps preload and free updates |
 |
DVD * Support DVD/VCD/CD/MP3/MP4/WMA/ |
 |
Radio * Built-in AM/FM tuner |
 |
Apple CarPlay(optional) * Support Apple Carpaly with iPhone |
 |
Bluetooth * Hands free phone call* Load phone book from you mobile phone * Bluetooth music stream A2DP * Internal Microphone * Compatible with iPhone & Android mobile phone |
 |
Android Auto(optional) * Support Android Auto with Android phone |
 |
Backup Camera(camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo and ebook |
 |
TV(TV tuner is optional) * Support ATSC |
 |
DVR(camera is optional) * support forward video recoder while driving |
 |
SWC * Support original steering wheel control |
 |
AUX * One channel A/V input for external device* One channel A/V output for rear headrest monitor/roof monitor/amp |
|
Google Play * Android Market provide numerous apps download,such as Skype/MSN/Youtube/Twitter/Facebook free download as much as you need |
 |
Network * Wi-Fi |
