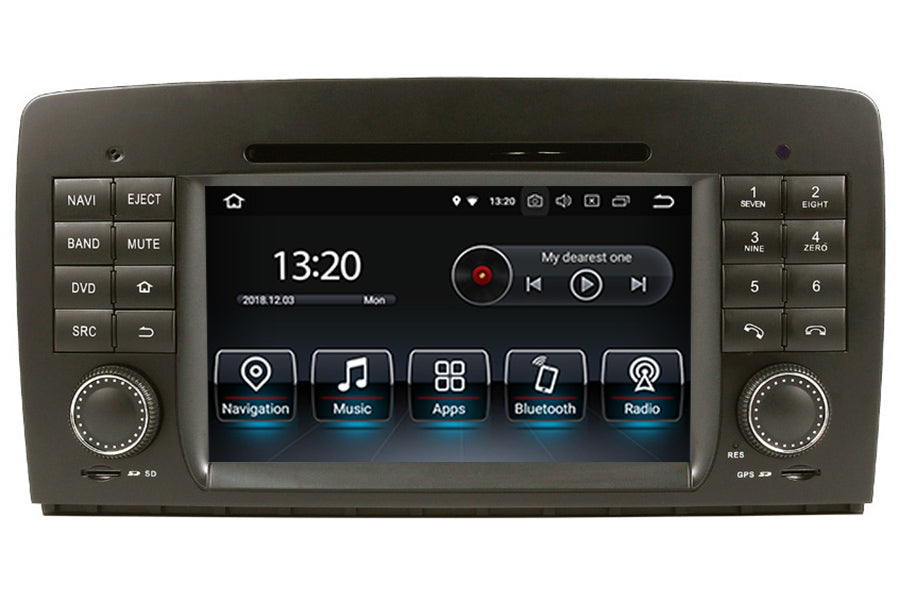

Mercedes-Benz R(W251) Aftermarket Navigation Player has a 7 inch TFT touch screen, it is designed to replace stock Benz radio system, totally plug and play, no need to cut wires, free gps navigation map preloaded for your country. It fits to:

Mercedes-Benz R(W251) 2006 2007 2008 2009 2010 2011 2012

If your vehicle has fiber optics amplifier audio system, then you need to by an extra extension cable to bypass the fiber optics amplifier system, otherwise there will be no audio after install our radio. After install the extension cable, there will be only four car speakers work.

Note above year range is for your reference only. Check with us by sending an interior picture if you are not sure about fitness.

INSTALLATION PHOTOS

FUNCTIONAL DESCRIPTION

• Screen: TFT(800*480px) digital touchscreen
• Audio: 4 x 52w, 4 Channel line-out
• EQ control: Bass, Treble, Balance and Fade
• Video Systems: PAL, NTSC, AUTO
• Video Compatibility: DVD, DVD-R, DVD-RW, HDVD, DVCD, MP3, MP4, CD-R, CD-RW, VCD, DIVX(MPEG-4) etc. Can support high definition video(1080P)
• Video output/input: One set video output(Audio Out L, Audio Out R, Video Out) and one set video input(AUX-IN L, AUX-IN R, AUX-VIDEO IN)
• Radio receiving: High sensitive FM/AM tuner 50 stations restorable, support RDS function, diaplay radio station name
• AM Frequency Range: 522~1710KHz (Worldwide)
• FM Tuning Range: 87.5~108.0MHz (Worldwide)
• iPod Control: Support music, NOT support video
• Bluetooth: Phonecall, phonebook and A2DP Bluetooth music stream
• USB drive: Support multimedia, support 32GB capacity
• SD card: Dual card slots, one is for GPS software, another one is for multimedia files, support 32GB capacity
• Steering Wheel Control: Support original steering wheel controls like Vol+/-, Pre/Next, Mode etc. (not support pickup / hang off phone)
• Power Supply: DC 10-14.6V
• Working Temperature: -20 ~ 80 degree c
• Navigation System: Operation system: WINCE 6.0 CORE
• GPS maps: Support map: Tomtom, iGO(Primo), Route66, Navitel, Garmin. etc.
• Voice navigation: Support TTS voice navigation
• Dual zone: Support navigation while listen to music at the same time
• Analog TV: Built-in analog TV system, ATV antenna is not included
• Digital TV: DVB-T, DVB T2, ATSC, ISDB-T: Optional
• Rearview camera: automatic reversing rearview when reversing: Optional
• Parking radar: show distance on monitor when reversing: Optional
• Tire pressure monitoring system: show tyre pressure status on monitor: Optional

SCREEN SHOTS

Main Menu		DVD

Radio		AUX

Bluetooth Phone Call		A2DP

iPod		USB
