Mercedes-Benz E(W212) RHD Aftermarket Radio Upgrade

Radio-Upgrade

Mercedes-Benz E(W212) RHD Aftermarket Radio Upgrade

Sale price$675.00 USD Regular price$775.00 USD
Save $100.00

Shipping calculated at checkout

CarPlay/Android Auto:No Thanks
Backup Camera:No Thanks
Front In-Dash Camera:No Thanks

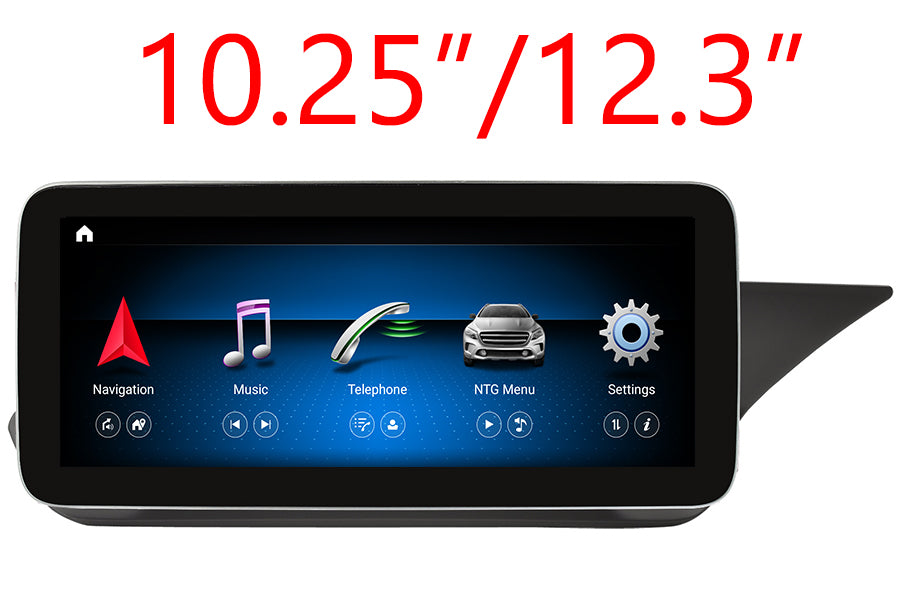

Mercedes-Benz E-Class (W212) radio upgrade system has a 10.25(12.3 optional) inch touchscreen, it is specially designed to upgrade the Mercedes-Benz E-Class (W212) 2010-2016 radio system. It's plug-and-play, no need to cut wire. It retains the factory Mercedes-Benz radio system, computer info, Bluetooth, and all other information which displays on the original screen. The upgrade system has GPS navigation, Wi-Fi, 4G LTE(sim card is not included), SD/USB music/video, backup camera(optional), digital TV(optional), front in-dash camera(optional), Wireless apple carplay(optional), Wired Android Auto(optional), Google play store etc. You can also install other apps you want from the google play store, for example, Gmail, YouTube, Spotify, google maps and Waze, etc.


Compatible vehicles:
Mercedes-Benz E-Class (W212) RHD 2010, 2011, 2012, 2013, 2014, 2015, 2016

Mercedes-Benz E-Class (W212) 2010-2016 radio upgrade


User manual: https://www.carnaviplayer.com/docs/user_manual/FY/User_Manual.pdf
Installation manual: https://www.carnaviplayer.com/docs/Installation_instructions/4353.pdf


Attention:  Mercedes-Benz E-Class (W212) has several different radio systems, and the LVDS ports and software are different. The Audio 20/Audio 50/NTG 4.0 radio system has a 10-pin rectangle LVDS connection port but the NTG 4.5/4.7/5.0/5.1/5.2 has 4 pins round LVDS connection port. Please select the correct radio system for your car when placing the order. If you are not sure what radio system it is on your car, then please send the VIN and a photo of the radio dashboard to us, we will help you to check it.

Mercedes-Benz E-Class (W212) 2010-2016 radio upgrade


Installation photo:

Mercedes-Benz E-Class (A207/C207) 2009-2017 radio upgrade


Display 10.25-inch(optional 12.3-inch), resolutions 1920 by 720
Processor Qualcomm Snapdragon 8-core 2.0GHz
Memory 4GB(optional 6GB/8GB)
Storage 64GB(optional 128GB/256GB)
SD/TF card One 3.0 card slot(Max 128GB)
USB port USB ports(Max 64GB)
Video play MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc.
Video input One video input(RCA port)(optional)
Camera input One camera video input(RCA port)
Microphone  Internal & External Microphone(optional)
Bluetooth Bluetooth 5.0 module
Network Wi-Fi and 4G LTE
Audio IC RK616(Built-in Core module)
GPS receiver  External GPS antenna(include)

s100 navigation function

   Navigation

    * Free maps preload and free updates
    * Stunning 3D visualization
    * Text-to-speech direction
    * Support Google maps, Waze, Sygic, etc.

network for s100 navigation radio

   Network

    * Wi-Fi/4G LTE

radio with rds

   Radio

   * Remains original Mercedes-Benz AM/FM/Sirius/XM tuner

apple carplay

   Apple CarPlay(optional)

    * Support Apple Carplay with iPhone
bluetooth phone call a2dp

   Bluetooth

    * Hands-free phone call
    * Load the phone book from your mobile phone
    * Bluetooth music stream A2DP
    * Internal & External Microphone(optional)
    * Compatible with iPhone & Android mobile phones
mirror link

   Android Auto(optional)

    * Support Android Auto with Android phones
    * Wired connection, not wireless
    * Charge phone while playing
backup camera parking radar

   Backup Camera(camera is optional)

    * Display reverse image automatically
      once put in the reverse
    *Sony CCD camera with night vision

sd usb music   play

   SD/USB

    * SD card/USB music, video, photo, and ebook
    * Charge phone through USB port

car digital tv receiver

   TV(TV tuner is optional)

    * Support ATSC/DVB-T/DVB-T2/ISDB-T

dvr   for s100 navigation radio

   DVR(camera is optional)

    * support forward video recorder while driving
    * Operate via touchscreen
    * USB port, Plug & Play


Mercedes-Benz radio upgrade with touchscreen


Is this product plug-and-play? Do I need to program or code my Mercedes-Benz? Do I need to buy the external GPS antenna? Can I still check the original car information as the OEM screen?


Answer: Yes, it is plug and play, it has the same plugs and harness as the original Mercedes-Benz radio, no need to cut wires when installed. You do not need to program/code your car. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Mercedes-Benz car information as before.


Can I operate the original Mercedes-Benz system through the new touchscreen?
Answer: NO. You can only operate the original Mercedes-Benz NTG system through the command knob as before.


Can I operate the new radio upgrade system interface through the command knob?
Answer: Yes. You can operate the new upgrade system through the command knob and touchscreen. Operation video: https://www.youtube.com/watch?v=-IMVPGoCDU4


How do I switch between the new upgrade system and the original Mercedes-Benz system?
Answer: There are two methods to switch between the new upgrade system and the original Mercedes-Benz system
Method 1: Please press “BACKâ€?or "C" or "CLR" command button for 3 seconds to switch between the original Mercedes-Benz NTG system and the new upgrade system.
Method 2: Click the "NTG-Menu" icon on the upgrade system's home menu to access the original Mercedes-Benz NTG system.  Touch the screen to access the new upgrade system when it is on the original Mercedes-Benz NTG system.


Why does it show "No signal" or blank screen when switching to the original Mercedes-Benz interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the original Mercedes-Benz screen, not the one behind the original head unit) to the "LVDS" port on the new screen.

NTG 4.0 has the 10-pin square LVDS port. NTG 4.5/4.7/5.0/5.1/5.2/5.5 have 4 pins round LVDS plug.


Why does the original Mercedes-Benz screen not display correctly?
Answer: Please check Settings/Factory/input password 190627/Car Display, then select the correct resolution settings to match with your car. For example, if the original screen on your car is a small screen, then please select 400*240, if the original screen is a big screen, please select 800*480.


Why is there no audio from the new upgrade system?
Answer:

1. Please check if there is an AUX IN port or AMI port on your car, usually it is in the center armrest box or glove box on the passenger side.

Mercedes-Benz ami port

2. If there is AUX IN port(NTG 4.0/4.5/4.7) on your car, please activate AUX mode, then switch to the upgrade system to get sound.
If there is an AMI port(NTG 4.0/4.5/4.7) on your car, you need to plug our AMI-AUX cord into the AMI port, then you will see the AUX audio option, activate AUX mode, then switch to the upgrade system to get sound.


 Why does the Sirius/XM radio, CD, original car computer info, and factory camera does not display? Why can I not see the AMI or AUX IN audio option on the screen even though the AMI-AUX cable is already plugged into the AMI port?
Answer: Please check the fiber optics plug, you need to move it from the original connector to the new connector we provided.
