Mercedes-Benz C(W205)/GLC(X253)/V(W447)/X(W470) radio upgrade

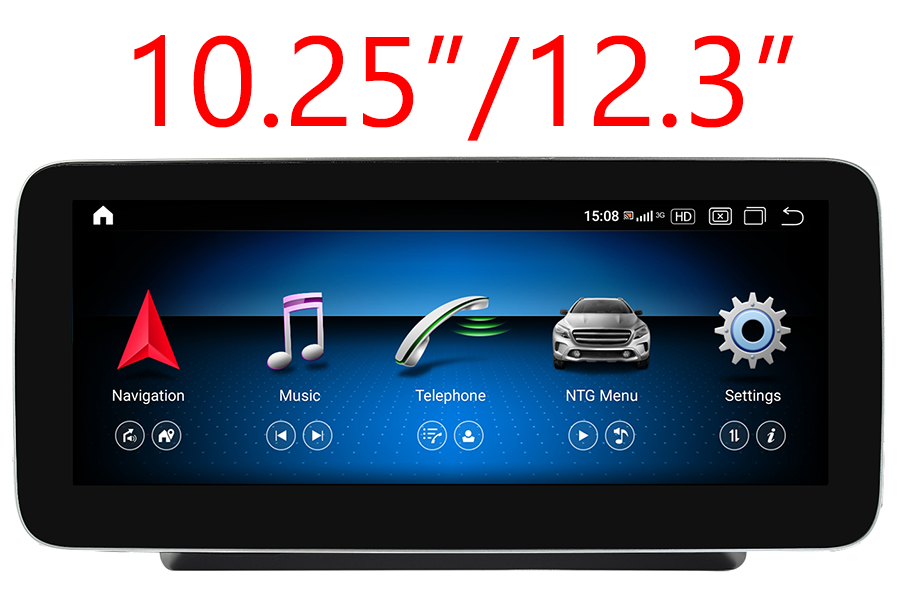

Mercedes-Benz C(W205)/GLC(X253)/V(W447)/X(W470) radio upgrade system has a 10.25(12.3 optional) inch touchscreen, it is specially designed to upgrade the Mercedes-Benz C(W205)/GLC(X253)/V(W447)/X(W470) radio system. It's plug-and-play, no need to cut wire. It retains the factory Mercedes-Benz radio system, computer info, Bluetooth, and all other information which displays on the original screen. The upgrade system has GPS navigation, Wi-Fi, 4G LTE(sim card is not included), SD/USB music/video, backup camera(optional), digital TV(optional), front in-dash camera(optional), Wireless apple carplay(optional), Wired Android Auto(optional), Google play store etc. You can also install other apps you want from the google play store, for example, Gmail, YouTube, Spotify, google maps and Waze, etc.
Mercedes-Benz C-Class (W205) 2015 2016 2017 2018
Mercedes-Benz GLC-Class (X253/C253) 2016 2017 2018 2019
Mercedes-Benz V-Class (W447) 2016 2017 2018
Mercedes-Benz X-Class (W470) 2017 2018 2019 2020
User manual: https://www.carnaviplayer.com/docs/user_manual/FY/User_Manual.pdf
Installation manual: https://www.carnaviplayer.com/docs/Installation_instructions/4318.pdf
|Display||10.25-inch(optional 12.3-inch), resolutions 1920 by 720|
|Processor||Qualcomm Snapdragon 8-core 2.0GHz|
|SD/TF card||One 3.0 card slot(Max 128GB)|
|USB port||USB ports(Max 64GB)|
|Video play||MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc.|
|Video input||One video input(RCA port)(optional)|
|Camera input||One camera video input(RCA port)|
|Microphone||Internal & External Microphone(optional)|
|Bluetooth||Bluetooth 5.0 module|
|Network||Wi-Fi and 4G LTE|
|Audio IC||RK616(Built-in Core module)|
|GPS receiver||External GPS antenna(include)|
* Free maps preload and free updates
* Wi-Fi/4G LTE
* Remains original Mercedes-Benz AM/FM/Sirius/XM tuner
Apple CarPlay(optional)* Support Apple Carplay with iPhone
Bluetooth* Hands-free phone call
* Load the phone book from your mobile phone
* Bluetooth music stream A2DP
* Internal & External Microphone(optional)
* Compatible with iPhone & Android mobile phones
Android Auto(optional)* Support Android Auto with Android phones
* Wired connection, not wireless
* Charge phone while playing
BackupCamera aCameraa is optional)
* Display reverse image automatically
* SD card/USB music, video, photo
TV(TV tuner is optional)
* Support ATSC/DVB-T/DVB-T2/ISDB-T
DVRCameraa is optional)
* support forward video recorder while driving
Is this product plug-and-play? Do I need to program or code my Mercedes-Benz? Do I need to buy the external GPS antenna? Can I still check the original car information as the OEM screen?
Answer: Yes, it is plug and play, it has the same plugs and harness as the original Mercedes-Benz radio, no need to cut wires when installed. You do not need to program/code your car. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Mercedes-Benz car information as before.
Can I operate the original Mercedes-Benz system through the new touchscreen?
Answer: NO. You can only operate the original Mercedes-Benz NTG system through the command knob as before.
Can I operate the new radio upgrade system interface through the command knob?
Answer: Yes. You can operate the new upgrade system through the command knob and touchscreen. Operation video: https://www.youtube.com/watch?v=-IMVPGoCDU4
How do I switch between the new upgrade system and the original Mercedes-Benz system?
Answer: There are two methods to switch between the new upgrade system and the original Mercedes-Benz system
Method 1: Please press “BACKâ€?or "C" or "CLR" command button for 3 seconds to switch between the original Mercedes-Benz NTG system and the new upgrade system.
Method 2: Click the "NTG-Menu" icon on the upgrade system's home menu to access the original Mercedes-Benz NTG system. Touch the screen to access the new upgrade system when it is on the original Mercedes-Benz NTG system.
Why does it show "No signal" or blank screen when switching to the original Mercedes-Benz interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the original Mercedes-Benz screen, not the one behind the original head unit) to the "LVDS" port on the new screen.
NTG 4.0 has the 10-pin square LVDS port. NTG 4.5/4.7/5.0/5.1/5.2/5.5 have 4 pins round LVDS plugs.
Why does the original Mercedes-Benz screen not display correctly?
Answer: Please check Settings/Factory/input password 190627/Car Display, then select the correct resolution settings to match with your car. For example, if the original screen on your car is a small screen, then please select 400*240, if the original screen is a big screen, please select 800*480.
Why is there no audio from the new upgrade system?
1. Please check if there is an AUX IN port or AMI port on your car, usually it is in the center armrest box or glove box on the passenger side.
2. If there is AUX IN port(NTG 4.0/4.5/4.7) on your car, please activate AUX mode, then switch to the upgrade system to get sound.
If there is an AMI port(NTG 4.0/4.5/4.7) on your car, you need to plug our AMI-AUX cord into the AMI port, then you will see the AUX audio option, activate AUX mode, then switch to the upgrade system to get sound.
Why does the Sirius/XM radio, CD, original car computer info, and factory camera does not display? Why can I not see the AMI or AUX IN audio option on the screen even though the AMI-AUX cable is already plugged into the AMI port?
Answer: Please check the fiber optics plug, you need to move it from the original connector to the new connector we provided.
