Mercedes-Benz CL(C216)/S(W221) Dual Screen Style Radio Upgrade

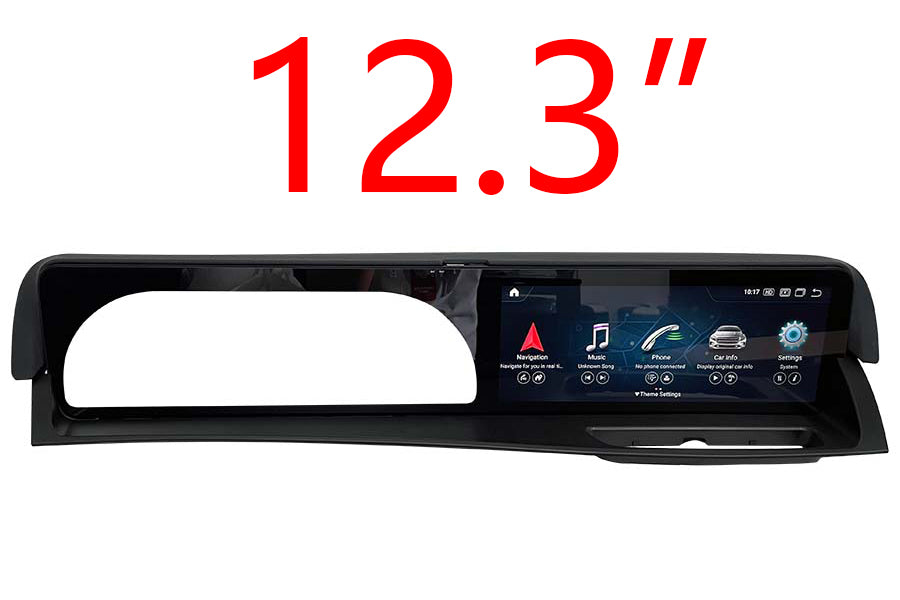

Mercedes-Benz CL(C216)/S(W221) Class LHD 2006-2014 radio upgrade system has a 12.3-inch touchscreen. It is specially designed to upgrade the Mercedes-Benz CL(C216)/S(W221) Class 2006-2014 radio system. It is plug-and-play. No need to cut wire. It retains the factory Mercedes-Benz radio system, computer info, Bluetooth, and all other information displayed on the original screen. In addition, the upgrade system has GPS navigation, Wi-Fi, 4G LTE(sim card is not included), SD/USB music/video, backup camera(optional), digital TV(optional), front in-dash camera(optional), Apple carplay(optional), Android Auto(optional), Google play store, etc. You can also install other apps you want from the google play store, for example, Gmail, YouTube, Spotify, google maps and Waze, etc.
Compatible vehicles:
Mercedes-Benz S-Class (W221) LHD 2006 2007 2008 2009 2010 2011 2012 2013
Mercedes-Benz CL-Class (C216) LHD 2006 2007 2008 2009 2010 2011 2012 2013 2014
User manual: https://www.carnaviplayer.com/docs/user_manual/FY/User_Manual.pdf
Installation manual: https://www.carnaviplayer.com/docs/Installation_instructions/MB-7121.pdf
Installation video: https://youtu.be/lpxnmuozFuw
Demo video: https://youtu.be/erZXxiDNtBs
If your car does not have an MMI port or AUX-IN port, please check this video on how to activate the AUX feature: https://youtu.be/vBgy4V-jkQA
Attention: Mercedes-Benz CL(C216)/S(W221) Class has two different NTG systems, NTG 3.0 and NTG 3.5 radio systems. The software and hardware are different. Please select the correct NTG system for your car when placing the order. If you are unsure what NTG system it is on your vehicle, please send the VIN and a photo of the radio dashboard to us, and we will help you check it.
Before
After
| Display | 12.3-inch, resolutions 1920 by 720 |
| Processor | Qualcomm Snapdragon 8-core 2.0GHz |
| Memory | 4GB(optional 6GB/8GB) |
| Storage | 64GB(optional 128GB/256GB) |
| SD/TF card | One 3.0 card slot(Max 128GB) |
| USB port | USB ports(Max 64GB) |
| Video play | MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc. |
| Video input | One video input(RCA port)(optional) |
| Camera input | One camera video input(RCA port) |
| Microphone | Internal & External Microphone(optional) |
| Bluetooth | Bluetooth 5.0 module |
| Network | Wi-Fi and 4G LTE |
| Audio IC | RK616(Built-in Core module) |
| GPS receiver | External GPS antenna(include) |
|
|
Navigation * Free maps preload and free updates |
 |
Network * Wi-Fi/4G LTE |
 |
Radio * Remains original Mercedes-Benz AM/FM/Sirius/XM tuner |
 |
Apple CarPlay * Support Apple Carplay with iPhone |
 |
Bluetooth * Hands-free phone call* Load the phone book from your mobile phone * Bluetooth music stream A2DP * Internal & External Microphone(optional) * Compatible with iPhone & Android mobile phones |
 |
Android Auto * Support Android Auto with Android phone |
 |
Backup Camera (Camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo, and ebook |
 |
TV(TV tuner is optional) * Support ATSC/DVB-T/DVB-T2/ISDB-T |
 |
DVR(Camera is optional) * support forward video recorder while driving |
Is this product plug-and-play? Do I need to program or code my Mercedes-Benz? Do I need to buy the external GPS antenna? Can I still check the original car information on the OEM screen?
Answer: Yes, it is plug-and-play. It has the same plugs and harness as the original Mercedes-Benz radio. No need to cut wires when installed. You do not need to program/code your car. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Mercedes-Benz car information as before.
Can I operate the original Mercedes-Benz system through the new touchscreen?
Answer: NO. As before, you can only operate the original Mercedes-Benz NTG system through the command knob.
Can I operate the new radio upgrade system interface through the command knob?
Answer: Yes. You can operate the new upgrade system through the command knob and touchscreen. Operation video: https://www.youtube.com/watch?v=-IMVPGoCDU4
How do I switch between the new upgrade system and the original Mercedes-Benz system?
Answer: There are two methods to switch between the new upgrade system and the original Mercedes-Benz system
Method 1: Please press the "BACK" or "C" or "CLR" command button for 3 seconds to switch between the original Mercedes-Benz NTG system and the new upgrade system.
Method 2: Click the "NTG-Menu" icon on the upgrade system's home menu to access the original Mercedes-Benz NTG system. Touch the screen to access the new upgrade system when it is on the original Mercedes-Benz NTG system.
Why does it show "No signal" or a blank screen when switching to the original Mercedes-Benz interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the original Mercedes-Benz screen, not the one behind the original head unit) to the "LVDS" port on the new screen.
NTG 3.0 has a 10-pin square LVDS port. NTG 3.5 have a 4-pin round LVDS plug.
Why does the original Mercedes-Benz screen not display correctly?
Answer: Please check Settings/Factory/input password 190627/Car Display, then select the correct resolution settings to match your car. For example, if the original screen on your vehicle is small, please select 400*240. If the original screen is big, please choose 800*480.
Why is there no audio from the new upgrade system?
Answer:
1. Please check if your car has an AUX IN or AMI port. Usually, it is in the center armrest box or glove box on the passenger side.
2. If there is an AUX IN port on your car, please select AUX mode, then switch to the upgrade system to get sound.
If your car has an AMI port, you need to plug our AMI-AUX cord into the AMI port. Then you will see the AUX audio option, activate AUX mode, then switch to the upgrade system to get sound.
If your car does not have an MMI or AUX-IN port, please check this video on how to activate the AUX feature: https://youtu.be/vBgy4V-jkQA You will see the AUX option on the screen after starting the car.
Why does the Sirius/XM radio, CD, original car computer info, and factory camera not display? Also, why can I not see the AMI or AUX IN audio option on the screen even though the AMI-AUX cable is already plugged into the AMI port?
Answer: Please check the fiber optics plug. You need to move it from the original connector to the new connector we provided.
