Mazda 3 Aftermarket GPS Navigation Car Stereo (2005-2009)

Weight:

SKU:

Vehicles: Mazda

Product type: Car Stereo

Vendor: Radio-Upgrade

Availability:

$465.00

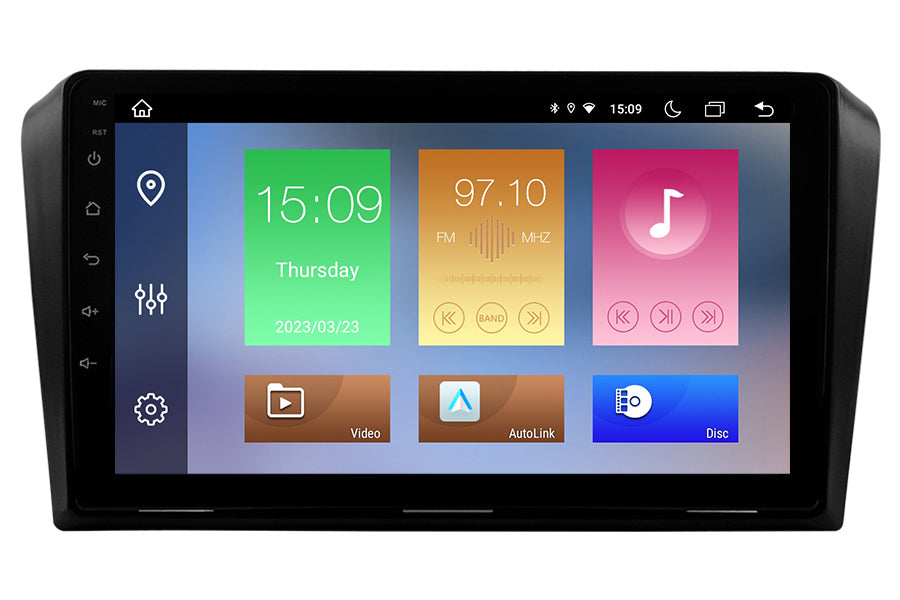

Mazda 3 2005-2009 Aftermarket Navigation Autoradio has a 7 inch touch screen, it comes with refitting frame which matches original dashboard perfectly. It is designed to replace stock radio system, totally plug and play, no gap installation, no need to cut wires, free gps navigation map preloaded.

Mazda 3 2005 2006 2007 2008 2009

Note year range is only for your reference. Check with us if you are not sure about fitness

This unit has built-in Canbus, the small in-dash display above stock radio will show time, tracks etc.

Software
System Operation Wince 6.0
Navigation System iGO Primo
Hardware
CPU 600MHZ(ARM11)
RAM 256MB
ROM 4GB
Screen 800*480px HD touchscreen, 65000 color
Bluetooth 2.402GHZ-2.480GHZ ISM Band
GPS Receiver
Frequency 1575.42MHZ C/A CODE
Protocol standard NMEA-0183 V3.01
Channel 22 channel for tracking
Tracking Sense

-164dBm

Locate 3m 2D RMS



INSTALLATION PHOTOS

\"mazda



FUNCTIONAL DESCRIPTION

  • 7.0 inch digital car dvd player(800*480)
  • Built-in GPS Navigation System, Bluetooth
  • Compatible with DVD,VCD,CD,MP3,MPEG4,CD-R,WMA and JPEG playbacks
  • Intelligent steering wheel control ( video clip view config video)
  • USB port and SD card slot
  • Car parking rearview signal input support
  • Parking close TFT automatically
  • Handbrake control
  • Electronic anti-shock protection
  • Full function remote control
  • iPod support
  • RDS receiver function
  • PAL,NTSC and SECAM systems
  • Digital TV( DVB-T, ATSC, ISDB-T) optional
  • Perfect compatibility
  • 2 AV output, aux audio and video inputs
  • RCA audio output
  • Power: 12V DC
  • GPS Navigation System: WinCE.net 6.0 CORE

  • Compatible with DVD, DVD-R, DVD-RW, HDVD, DVCD, MP3, MP4, CD-R, CD-RW, VCD, DIVX(MPEG-4), etc.
  • Built-in FM/AM Radio Receiver, FM Tuning Range: 87.5~108.0MHz(Worldwide), AM Frequency Range: 522~1710KHz(Worldwide).
  • Built-in GPS Receiver, support all countries of the world map.
  • Support iPod Control(ipod4, iPhone3/4/4s, you need an iPhone adapter for iPhone 5).
  • Built-in Bluetooth Module, support hands free Phone call, Phonebook and A2DP BT Music.
  • USB/SD port ready for Multimedia(music, video, photo), SDHC card as high as 32GB.
  • Support the original Steering Wheel Control(SWC).
  • Support Backup camera, parking radar and TPMS(optional), automatically display the reverse view when put the gear in the reverse.
  • Built-in Analog TV, Digital TV (DVB-T, ATSC, ISDB-T) (optional).
  • Video output/input: Two ways of video output and video input.
  • Built-in Amplifier, Audio output: 4 x 52w, 4 Channel line out.
  • EQ control: Bass, Treble, Balance and Fade.
  • Wallpaper can be changed.
  • Electronic anti-shock protection.
  • Auto Memory: the parameter and position can be memorized and restored automatically.
  • Remote Control: Full function of remote operation.
  • Power Supply: DC-10-14.6V.
  • Working Temperature(centidegree): -20~80.

GPS Navigation System:

  • Operation system: WinCE 6.0 CORE
  • Chipset: SIRF ATLAS IV
  • CPU: 533MHZ
  • Storage memory: 128 MB
  • Power Speci: DC12V, Current < 500mA
  • Consumption: 4.5W(12V/360mA), normal power consumption 3W(12V/250mA)
  • Support map: iGO, Tomtom, Route66. etc.
  • GPS dual zone function: navigation while listen to music at the same time
  • Navigation voice and display language: iGO(English, Deutsch, Fransais, Espanol, Nederlands, Magyar, Italiano, Cesky,Dansk, Norsk, Svenska, Portuguese, Finland, Romanian, Polski, Pyccknn)

What\'s included:

1 x Power cable
1 x GPS antenna
1 x Radio antenna converter
1 x CAN BUS decoder
1 x iPod cable
1 x USB cable
1 x Remote controller
1 x Radio removal keys (set)
1 x Users manual

Fitness & Installation:

Our unit is specially designed to replace the stock radio system, it is with the same harness as the stock one, totally plug and play, nothing else is needed to buy to make it work.

If you\'re not mechanically or electronically inclined, we highly recommend that you bring this unit to your local stereo shop and have it professionally installed.



SCREEN SHOTS

\"Main \"Main
Main Menu Main Menu



\"Radio\" \"Bluetooth
Radio Bluetooth Phone Call



\"A2DP\" \"Background\"
A2DP Background



\"Settings\" \"Time\"
Settings
Time
