Radio-Upgrade

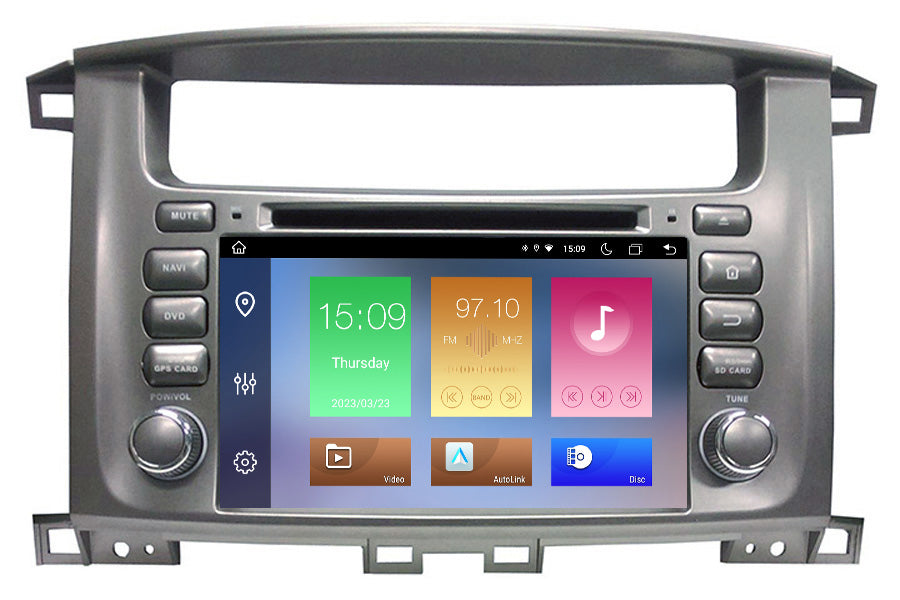

Lexus LX 470 Aftermarket GPS Navigation DVD Car Stereo (2003-2007)
Lexus LX 470 Aftermarket Navigation Head Unit Car Stereo has a 7 inch 16:9 TFT LCD monitor digital panel. It can support original steering wheel controls, MFD and amplifier. This unit is sepcially designed for:
Lexus LX 470 2003, 2004, 2005, 2006, 2007
Note above year range is for your reference only. Check with us if you are not sure about fitness.
INSTALLATION PHOTOS
Functional Description
- Screen: TFT(800*480px) digital touchscreen
- Audio: 4 x 52w, 4 Channel line-out
- EQ control: Bass, Treble, Balance and Fade
- Video Systems: PAL, NTSC, AUTO
- Video Compatibility: DVD, DVD-R, DVD-RW, HDVD, DVCD, MP3, MP4, CD-R, CD-RW, VCD, DIVX(MPEG-4) etc.
- Video output/input: One set video output(Audio Out L, Audio Out R, Video Out) and one set video input(AUX-IN L, AUX-IN R, AUX-VIDEO IN)
- Auto Memory: Parameter and position can be memorized and restored automatically
- Radio receiving: High sensitive FM/AM tuner 50 stations restorable
- AM Frequency Range: 522~1710KHz (Worldwide)
- FM Tuning Range: 87.5~108.0MHz (Worldwide)
- Bluetooth: Phonecall, phonebook and A2DP bluetooth music stream
- USB drive: Support multimedia, support 32GB capacity
- SD card: Dual card slots, one for GPS software, one for multimedia files, support 32GB capacity
- Steering Wheel Control: Support original steering wheel controls like Vol+/-, Pre/Next, Mode etc. (not support pickup / hang off phone)
- Remote Control: Full function of IR remote operation
- Power Supply: DC 10-14.6V
- Working Temperature: -20 ~ 80 degree c
- Navigation System: Operation system: WINCE 6.0 CORE
- GPS maps: Support map: Tomtom, iGO(Primo), Route66, Navitel, Garmin. etc.
- Voice navigation: Support TTS voice navigation
- Dual zone: Support navigation while listen to music at the same time
- Analog TV: Built-in analog TV system, ATV antenna is not included
- Digital TV: DVB-T, DVB T2, ATSC, ISDB-T Optional
- Rearview camera: automatic reversing rearview when reversing Optional
- Parking radar: show distance on monitor when reversing Optional
- Tire pressure monitoring system: show tyre pressure status on monitor Optional
What's included:
1 x Power cable
1 x GPS antenna
1 x Radio antenna converter
1 x iPod cable
1 x USB cable
1 x CAN BUS decoder
1 x Remote controller
1 x Radio removal keys
1 x Users manual
Fitness & Installation:
Our unit is specially designed to replace the stock radio system, it is with the same harness as stock one, totally plug and play, nothing else is needed to buy to make it work.
If you're not mechanically or electronically inclined, we highly recommend that you bring this unit to your local stereo shop and have it professionally installed.
