Radio-Upgrade

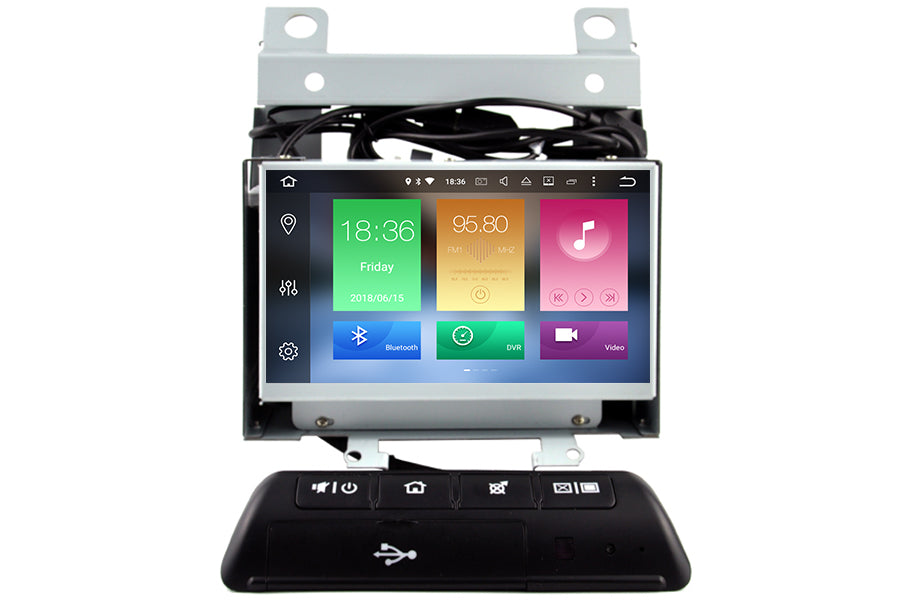

Land Rover Freelander 2 LR2 Android Aftermarket GPS Navigation Car Stereo (2005-2013)
This product allows you to upgrade the original Freelander 2/LR 2 standard radio(NO OEM screen) to Android OS smart multimedia system. Totally plug and play, the same harness and connectors as original head unit, no cutting wires. It will replace the current storage box by a 7 inch TFT touchscreen unit. After install this new product, you will get an intelligent entertainment system with Touchscreen, Navigation, Bluetooth phohne call, Bluetooth music, USB, backup camera(camera is optional), Digital TV(TV tuner is optional), Front in dash camera(camera is optional), Mirrorlink, Wi-Fi, Google Play, OBD(OBD II device is optional), Apple Carplay(optional), Android Auto(optional).
Vehicles Supported:
Land Rover Freelander 2 2005 2006 2007 2008 2009 2010 2011 2012 2013
Land Rover LR2 2005 2006 2007 2008 2009 2010 2011 2012 2013
Attention:
This product requests your vehicle support AUX-IN function. If your car does not have AUX-IN function, please DO NOT buy it.
This product is not compatible with vehicle with factory screen. If your car have factory screen, please DO NOT buy it.
Installation Pictures
Installation Manual: Land Rover Freelander 2 Head Unit With GPS Navigation System Installation Manual
Attention:
1. Make sure the power plug you are using is under the glove box instead of the plug behind the original radio, otherwise you can not turn on the radio and there is no audio(see installation step 9-11).
2. Please connect the audio connectors as below photo(otherwise there will be no audio):
3. This product doesn't have keyboard. All functions are controlled by the touchscreen.
Hardware | |
CPU | 1.6GHz Quad-core |
RAM | DDR3 2GB |
ROM | 16GB Internal Memory |
Screen | 7 inch HD 1024*600 Capacitive Touch Screen |
Network | WiFi |
USB port | Two USB port |
RCA audio output | Front Left, Front Right(RCA port) |
AUX input | One set A/V input(RCA port) |
Camera | One camera input(RCA port) |
Microphone | External(headphone jack 3.5mm port) |
GPS receiver | Built-in GPS module and External GPS receiver |
