Car Digital TV Tuner For Europe, Australia, Africa

Weight:

SKU:

Vehicles: Universal

Product type: Car Digital TV Tuner

Vendor: Radio-Upgrade

Availability:

$199.00

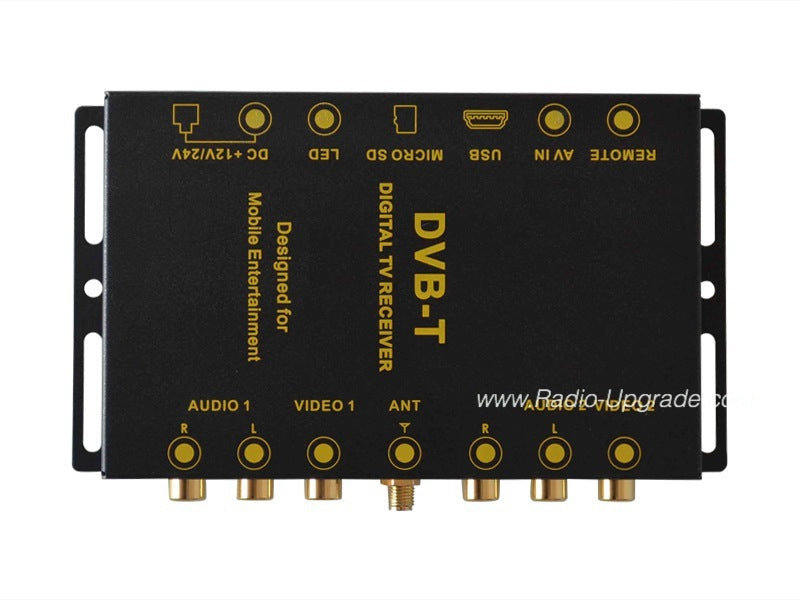

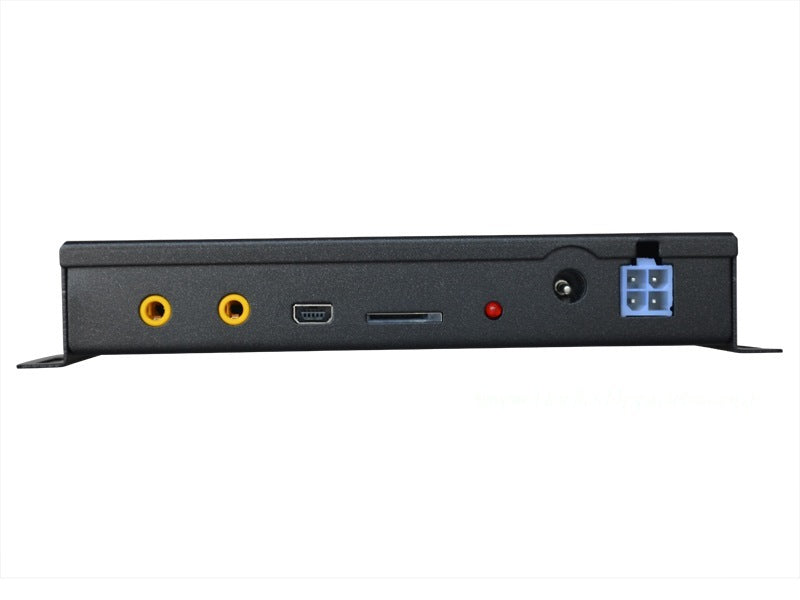

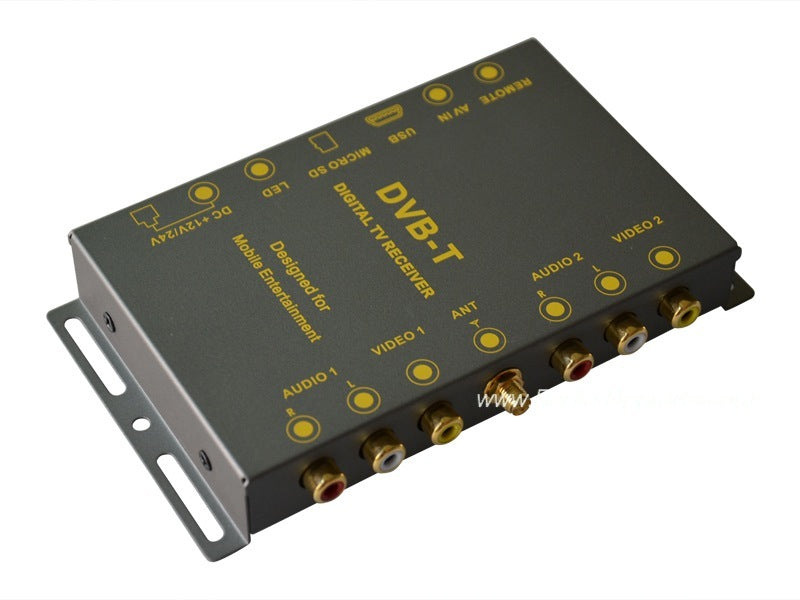

Car Digital TV Tuner For Europe, Australia, New Zealand, South Africa (maybe more...) You will able to watch digital tv on the in-dash radio player. No matter your vehicle is parking or moving.

Description

  • Receiving frequency: VHF-H (174MHz-230MHz), UHF (470MHz-862MHz)
  • Bandwidth: 8MHz
  • Input level: -78dBm to -20dBmInput resistance: 75Ω
    Speed over 120km/h min
  • Demodulator
  • Wave: CODFM
  • Demodulation: QPSK, QAM16. QAM64
  • Mode: 2K, 8K
  • Protection gap: 1/4, 1/8, 1/16, 1/32
  • Code rate: 1/2, 2/3, 2/4, 5/6, 7/8
  • Video Decoding
  • Standard: ISO/IEC 13818-2 MPEG-2
  • Video format: 4:3, 16:9
  • Resolution: max. 720*576
  • Input code rate: max. Mbit/S
  • Demultiplexer
  • Standard: ISP/IEC 13818-1
  • Max. input code current: 60Mbps (serial connection) /7.5MBps (parallel connection)
  • Audio Decoding
  • Standard: ISO/IEC 13818-3Channel mode: left, right and stereo
  • Sampling frequency: 32KHz, 44.1KHz, 48KHz
  • Microprocessor
  • SUNPLUS SPHE1002
  • Video Output
  • Output system: 720 x 480 (NTSC) / 720 x 576 (PAL)
  • Output level: 1.0Vpp
  • Output resistance: 75Ω

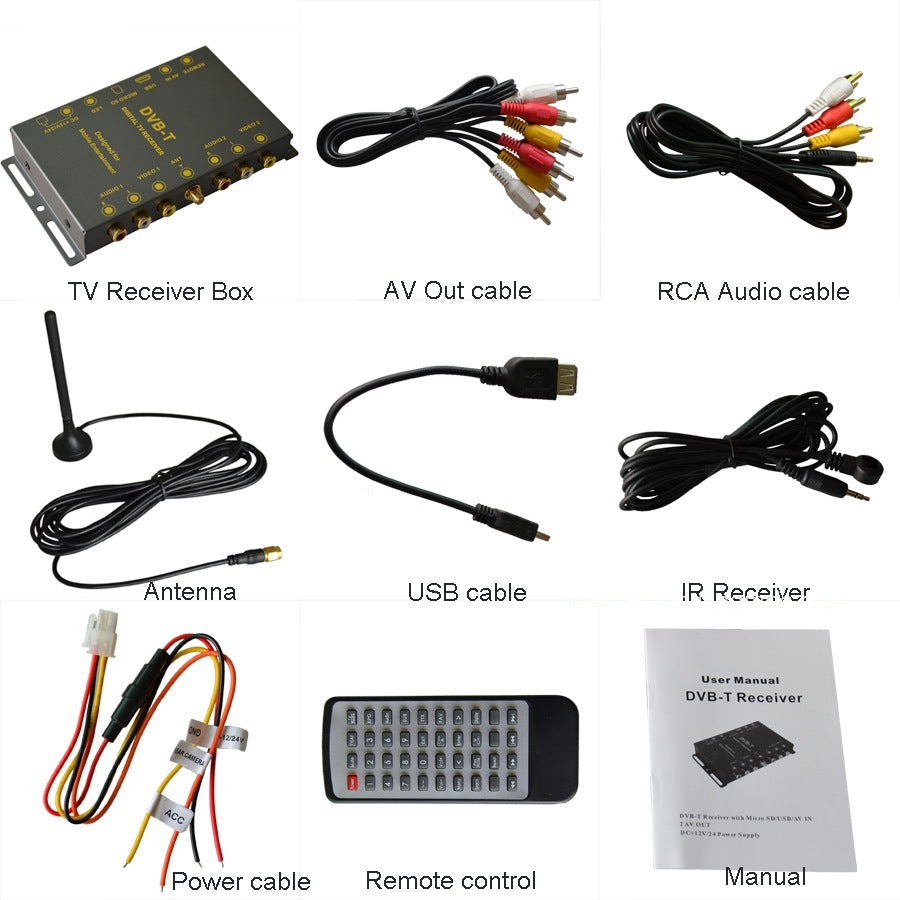

    What's Included
  • User's manual x 1
  • Remote control unit(RCU)x 1
  • Extended R/C box x 1
  • A/V wire x 1
  • Power supply wire x 1
  • Antenna x 1
