Radio-Upgrade
BMW X5 (E70) X6 (E71/E72) GPS Navigation Car Stereo (2007-2014)
Aftermarket GPS Navigation system is specially designed to upgrade BMW X5(E70)/X6 (E71/E72) factory LCD screem unit. It has the same plugs and harness as factory head unit, totally plug and play. This head unit only replaces the original LCD screen unit and retains the factory FM/CD unit, remain ALL the original BMW car computer/CD/FM/AM/Sirius/XM/iDrive control.You can also control the new menus via the original iDrive knobs and steering wheel buttons.
Vehicles Supported:
BMW X5(E70) 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 with CCC/CIC system
BMW X6(E71) 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 with CCC/CIC system
BMW X6(E72) 2009, 2010 with CCC/CIC system
Note BMW E70/E71/E72 come with two different iDrive systems: CCC and CIC
The LVDS connectors are different, please choose the correct system on your car so that we can send you correct items for your car. If you are not sure what iDrive system it is on your car, please send the VIN of your car and a photo of the dashboard(radio system) with home menu on the screen to us we will check it for you.
How do I know what system it is on my BMW?

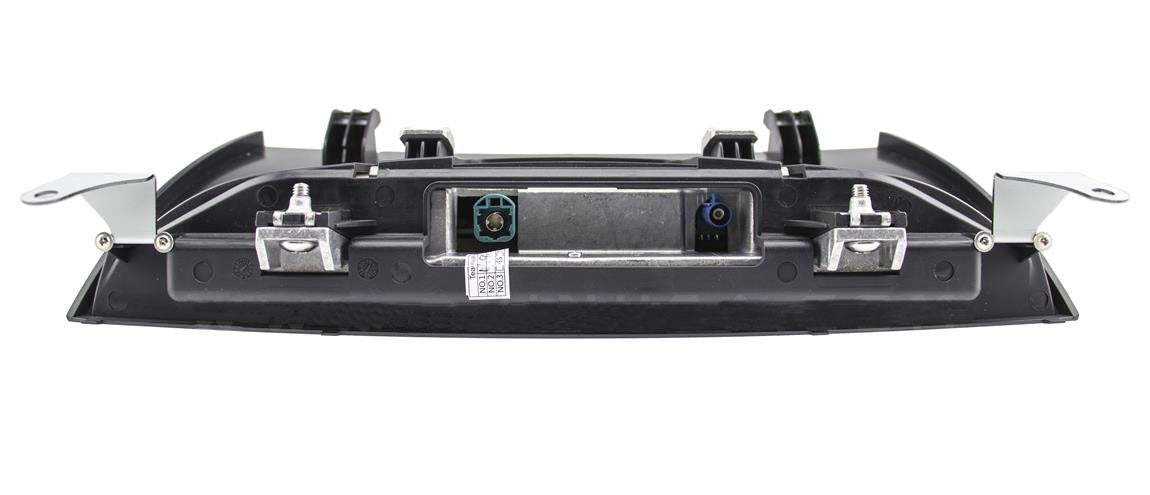

Factory radio

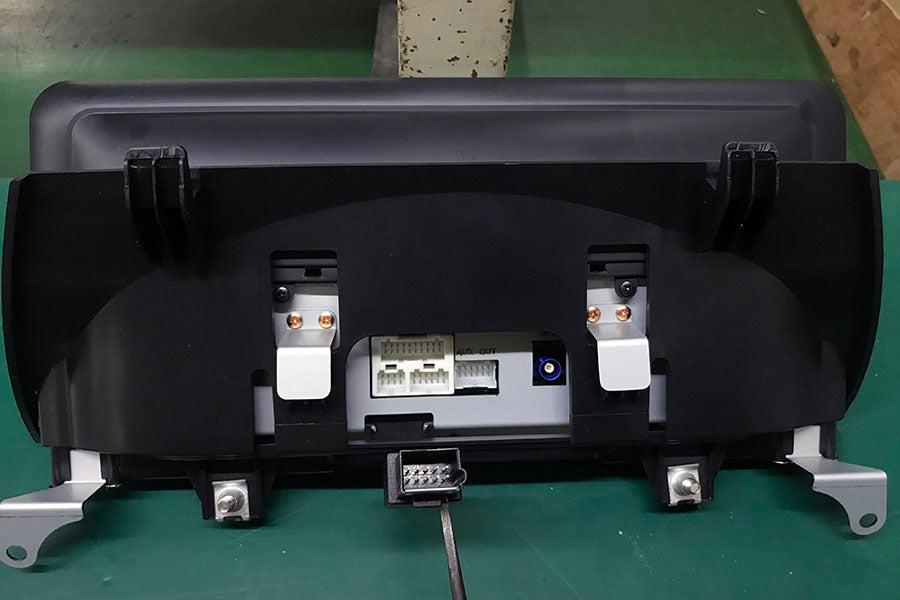

Installation Photo
User Manual
Wiring diagram
Operation video: https://www.youtube.com/watch?v=ZyHxMcXZ__Y
Backup camera video: https://www.youtube.com/watch?v=GjXbTAxazYs
| Operating system | Android Pie(9) |
| CPU(six core) | Rockchip PX6(RK3399), Dual Cortex-A72(1.8GHz)+Quad Cortex-A53(1.4GHz) |
| GPU | Mali T860MP4 |
| RAM | 4GB(LPDDR4) |
| ROM | 32GB(EMMC 5.1) Internal Memory |
| Screen | 10.25 inch 1920*720 Capacitive IPS Touch Screen |
| SD/TF card | One 3.0 card slot(Max 128GB) |
| USB port | Two USB 3.0 ports(Max 64GB) |
| Video play |
MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc. |
| Video input | One video input(RCA port)(optional) |
| Camera input |
One camera video input(RCA port) |
| Microphone | Internal & External Microphone(optional) |
| Bluetooth | Built-in BC6 3.0 Bluetooth module |
| Wi-Fi | Built-in(REL-8189ETVCG) 2.4Gb/g/n |
| Audio IC | RK616(Built in Core module) |
| GPS receiver | External GPS antenna(include) |
|
|
Navigation * Free maps preload and free updates |
 |
Network * Built-in Wi-Fi dongle |
 |
Radio * Remains BMW original AM/FM/Sirius/XM tuner |
 |
Apple CarPlay(optional) * Support Apple Carplay with iPhone |
 |
Bluetooth * Hands free phone call* Load phone book from you mobile phone * Bluetooth music stream A2DP * Internal Microphone * Compatible with iPhone & Android mobile phone |
 |
Android Auto(optional) * Support Android Auto with Android phones* Wired connection, not wireless * Charge phone while playing |
 |
Backup Camera(camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo and ebook |
 |
TV(TV tuner is optional) * Support ATSC |
 |
DVR(camera is optional) * support forward video recoder while driving |
Is this product plug and play? Do I need to program or code my BMW? Do I need to buy external GPS antenna? Can I still check the car info as the OEM screen?

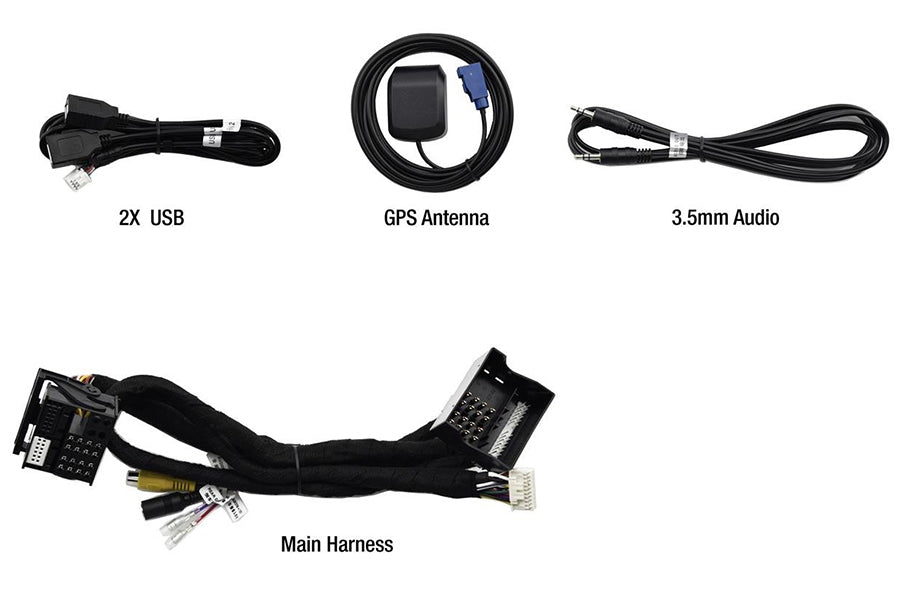

Answer: Yes, it is totally plug and play, it has the same plugs and harness as original BMW system. You do not need to program your car when installation, totally plug and play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.
How do I switch the new Android system to the original BMW CCC/CIC interface?
Answer: Please tap “Car-infoâ€?icon on the home screen OR long press (3 seconds) MENU button on iDrive to switch to original CCC/CIC interface.
How do I switch the original BMW CCC/CIC interface to new Android system?
Answer: Please tap the screen or long press (3 seconds) MENU button on iDrive.
Why it shows “No signalâ€?when tap “Car-infoâ€?or switch back to original BMW interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.
Different systems have different LVDS plugs.
Why there is no audio from new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged in the AUX-IN port on your car.
B. And also you need to activate AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.
Why does the Sirius/XM radio, original car computer info and factory camera does not display? Why does the AUX-IN volume stucks on zero and not adjustable?
Answer: Please check the fiber optics plug, you need to move it from the original connector to new connector we provided.
My car has factory backup camera, why it does not display when reverse the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
