BMW X1(E84) GPS Navigation Car Stereo (2009-2015)

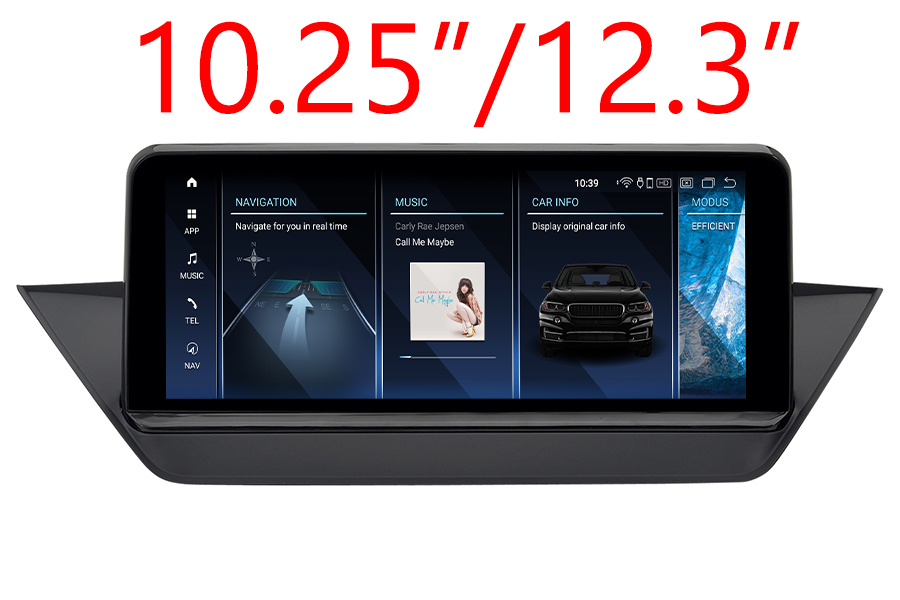

BMW aftermarket navigation system has a 10.25(optional 12.3) inch touchscreen, it is specially designed to upgrade the factory navigation system on BMW X1(E84) 2009-2015 , plug and play, no need to cut wires, free gps navigation map preloaded for your country. Supports the original car information.
Compatible Vehicles:
BMW X1(E84) 2009 2010 2011 2012 2013 2014 2015
Note above year range is for your reference only. Send a photo of the dashboard(radio system) to us if you are not sure about fitness.
Attention:
1. This product requests your car equips with AUX-IN port.
2. This product fits for BMW E84 with storage box, original 6.5 inch screen or 8.8 inch screen.
3. If your car has the OEM screen with iDrive controller. Then you can still operate the new system through the existing iDrive controller.

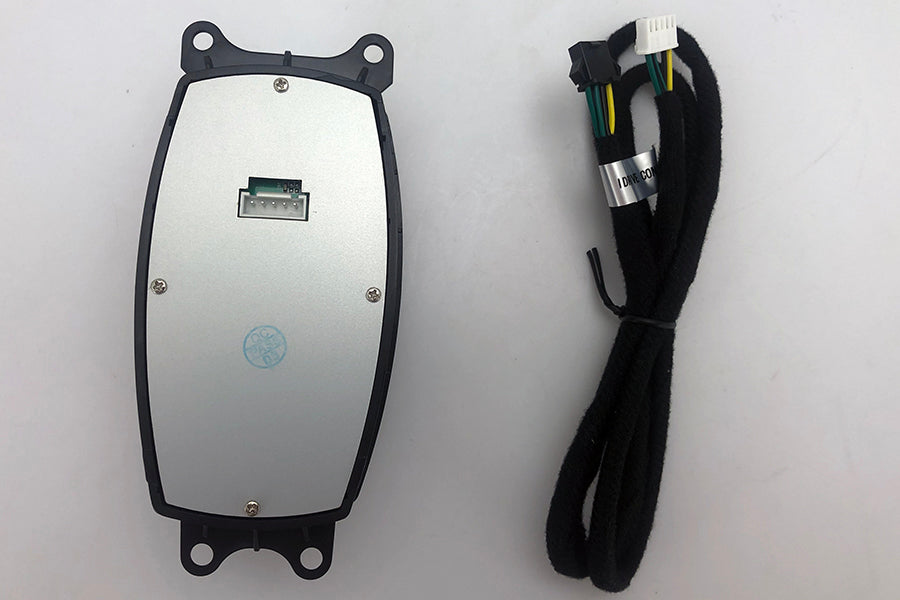

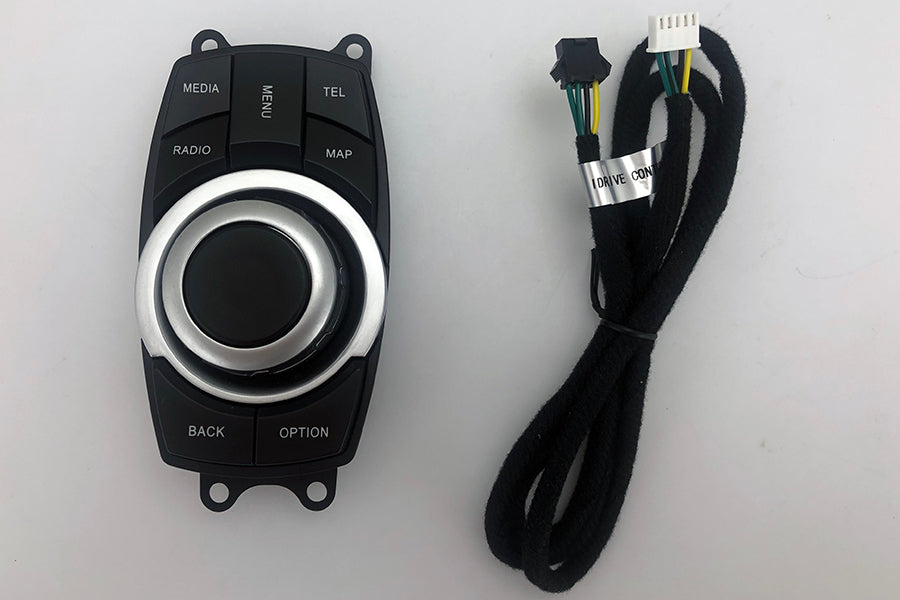

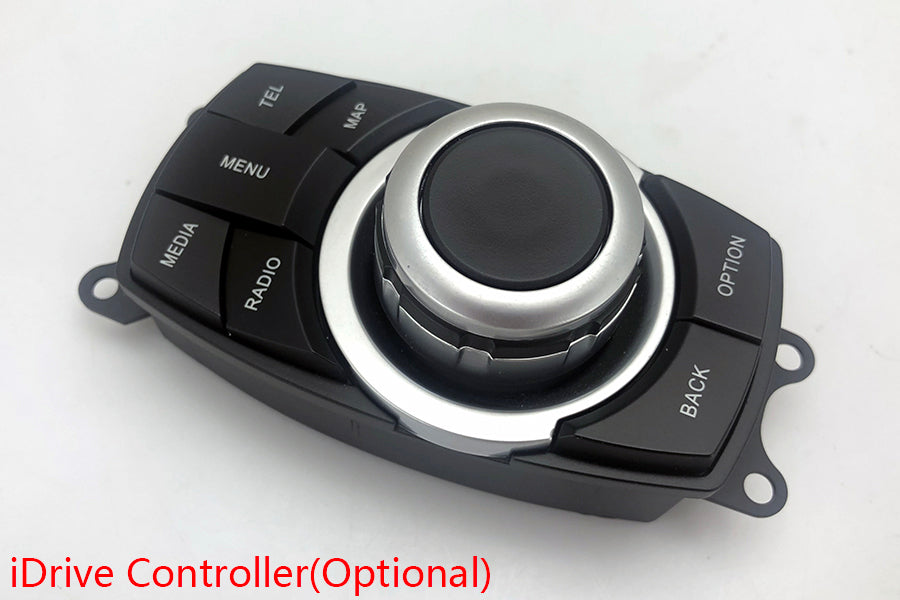

4. If your car has the storage box without iDrive system. Then you can install our iDrive controller.
Original radio system FYI

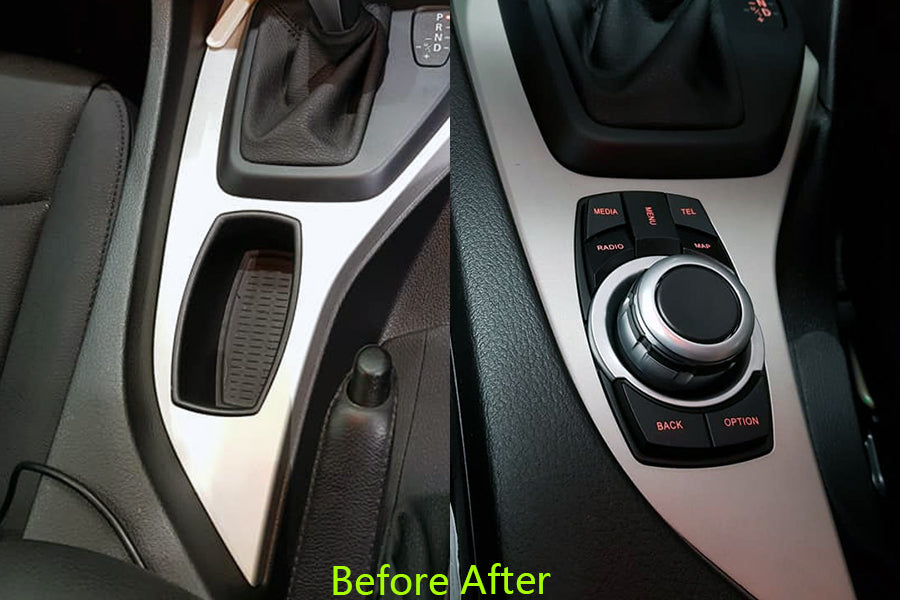

Installation photos
| Operating system | Android |
| Display | 10.25-inch(optional 12.3-inch), resolutions 1920 by 720 |
| Processor | Qualcomm Snapdragon 8-core 2.0GHz |
| Memory | 4GB(6GB optional) |
| Storage | 64GB(128GB optional) |
| SD/TF card | One 3.0 card slot(Max 128GB) |
| USB port | USB 3.0 ports(Max 64GB) |
| Video play | MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc. |
| Video input | One video input(RCA port)(optional) |
| Camera input | One camera video input(RCA port) |
| Microphone | Internal & External Microphone(optional) |
| Bluetooth | Bluetooth 5.0 module |
| Network | Wi-Fi/3G(4G) Lte |
| Audio IC | RK616(Built in Core module) |
| GPS receiver | External GPS antenna(include) |
|
|
Navigation * Free maps preload and free updates |
 |
Network * Wi-Fi/3G(4G) Lte |
 |
Radio * Remains original BMW AM/FM/Sirius/XM tuner |
 |
Apple CarPlay(optional) * Support Apple Carplay with iPhone |
 |
Bluetooth * Hands free phone call* Load phone book from you mobile phone * Bluetooth music stream A2DP * Internal & External Microphone(optional) * Compatible with iPhone & Android mobile phone |
 |
Android Auto(optional) * Support Android Auto with Android phones* Wired connection, not wireless * Charge phone while playing |
 |
Backup Camera(camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo and ebook |
 |
TV(TV tuner is optional) * Support ATSC/DVB-T/DVB-T2/ISDB-T |
 |
DVR(camera is optional) * support forward video recoder while driving |
Is this product plug and play? Do I need to program or code my BMW? Do I need to buy external GPS antenna? Can I still check the car info as the OEM screen?

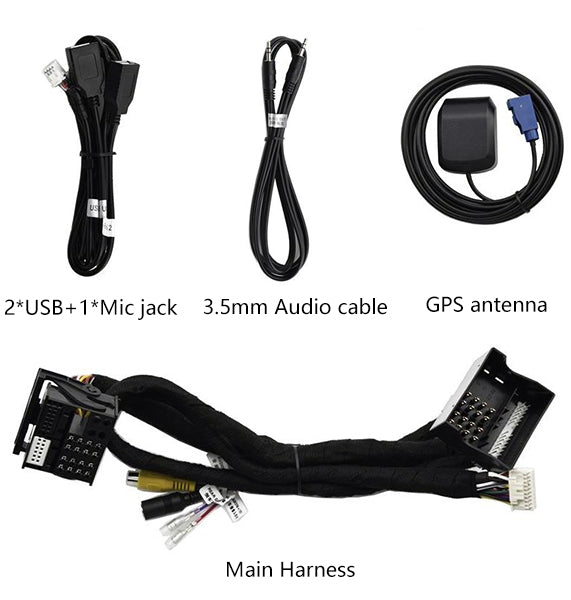

Answer: Yes, it is totally plug and play, it has the same plugs and harness as original BMW system. You do not need to program your car when installation, totally plug and play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.
How do I switch the new Android system to the original BMW CIC interface?
Answer: Please tap “Car-infoâ€?icon on the home screen OR long press (3 seconds) MENU button on iDrive to switch to original CIC interface.
How do I switch the original BMW CIC interface to new Android system?
Answer: Please tap the screen or long press (3 seconds) MENU button on iDrive.
Why it shows “No signalâ€?when tap “Car-infoâ€?or switch back to original BMW interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.
Different systems have different LVDS plugs.
Why there is no audio from new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged in the AUX-IN port on your car.
B. And also you need to activate AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.
Why does the Sirius/XM radio, original car computer info and factory camera does not display? Why does the AUX-IN volume stucks on zero and not adjustable?
Answer: Please check the fiber optics plug, you need to move it from the original connector to new connector we provided.
My car has factory backup camera, why it does not display when reverse the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
