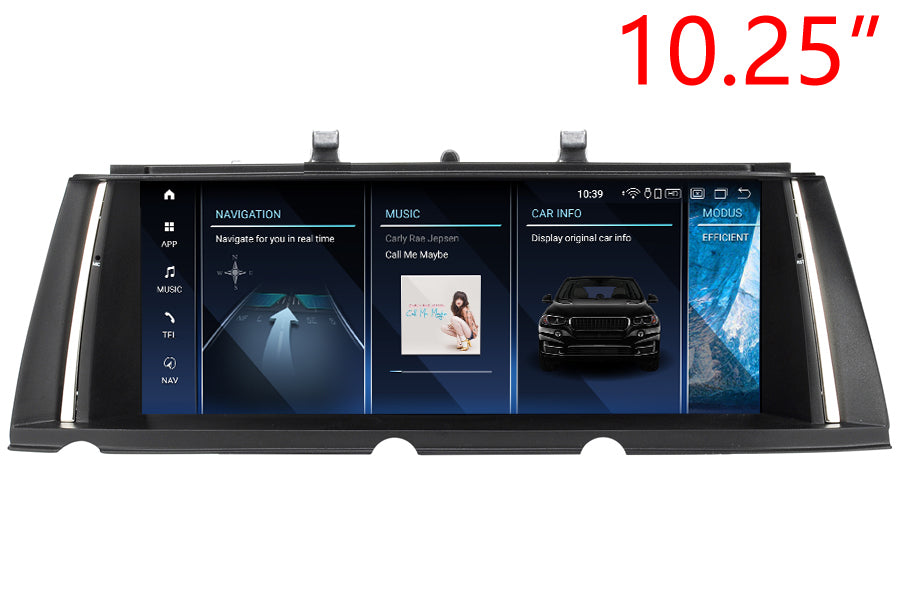

BMW 7 Series(F01/F02) 2009-2015 Radio Upgrade with 10.25" screen

Radio-Upgrade

BMW 7 Series(F01/F02) 2009-2015 Radio Upgrade with 10.25" screen

Sale price$599.00 USD Regular price$699.00 USD
Save $100.00

Shipping calculated at checkout

CarPlay/Android Auto:No Thanks
Backup Camera:No Thanks
Front In-Dash Camera:No Thanks

BMW aftermarket navigation head unit has a 10.25-inch touchscreen, it is specially designed to upgrade the stock radio system on BMW 7 Series(F01/F02) 2009-2015 with iDrive system, plug-and-play, no need to cut wires, free GPS navigation map preloaded for your country. It comes with CANBUS decoder, supports the original car information.


Compatible Vehicles:
BMW 7 Series(F01/F02) 2009, 2010, 2011, 2012, 2013, 2014, 2015


Note above year range is for your reference only. Send a photo of the dashboard(radio system) to us if you are unsure about fitness.

NOTE, if your car equips with an NBT system, then the LVDS behind the original screen is 6 pin. If your car equips with CIC system, then the LVDS plug maybe 4 pin or 6 pin. You must remove the original screen to check if it is 4 pin or 6 pin. The products are totally different, if you choose the wrong LVDS connector style, you will get the wrong product.
If you do not know how to verify the fitness, please send photos of an existing dashboard with a home menu on the screen, the VIN of your car and the LVDS connector behind the existing screen to info@carnaviplayer.com, we will help you to check.

BMW LVDS CONNECTOR


How do I know what system it is on my BMW?

bmw navigation systems


BMW 7 Series(F01/F02) 2009-2015 Aftermarket Navigation system


User Manual: http://www.carnaviplayer.com/docs/user_manual/BMW/User_Manual.pdf
Wiring diagram: http://www.carnaviplayer.com/docs/Installation_instructions/BMW_Wiring_Diagram.pdf
Installation video: https://youtu.be/kkuQ5gHciWQ
Installation Guide: https://www.carnaviplayer.com/docs/Installation_instructions/5257.pdf
Operation video: https://www.youtube.com/watch?v=ZyHxMcXZ__Y
Backup camera video: https://www.youtube.com/watch?v=GjXbTAxazYs


Display   10.25-inch resolutions 1920 by 720
Processor   Qualcomm Snapdragon 8-core 2.0GHz
Memory   4GB(6GB optional)
Storage   64GB(128GB optional)
SD/TF card   One 3.0 card slot(Max 128GB)
USB port   USB ports(Max 64GB)
Video play   MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc.
Video input   One video input(RCA port)(optional)
Camera input   One camera video input(RCA port)
Microphone    Internal & External Microphone(optional)
Bluetooth   Bluetooth 5.0 module
Network   Wi-Fi/3G(4G) Lte
Audio IC   RK616(Built-in Core module)
GPS receiver    External GPS antenna(include)

s100 navigation function

   Navigation

    * Free maps preload and free updates
    * Stunning 3D visualization
    * Text-to-speech direction
    * Support Google maps, Waze, Sygic, etc.

               network for s100 navigation radio

   Network

    * Wi-Fi/3G(4G) Lte


radio with rds

   Radio

   * Remains original BMW AM/FM/Sirius/XM tuner

  apple carplay

   Apple CarPlay(optional)

    * Support Apple Carplay with iPhone

bluetooth phone call a2dp

   Bluetooth

    * Hands-free phone call
    * Load the phone book from your mobile phone
    * Bluetooth music stream A2DP
    * Internal & External Microphone(optional)
    * Compatible with iPhone & Android mobile phones
  mirror link

   Android Auto(optional)

    * Support Android Auto with Android phones
    * Wired connection, not wireless
    * Charge phone while playing

backup camera parking radar

   Backup Camera (Camera is optional)

    * Display reverse image automatically
      once put in the reverse
    *Sony CCD camera with night vision

  sd usb music   play

   SD/USB

    * SD card/USB music, video, photo, and ebook
    * Charge phone through USB port


car digital tv receiver

   TV(TV tuner is optional)

    * Support ATSC/DVB-T/DVB-T2/ISDB-T

  dvr   for s100 navigation radio

   DVR(Camera is optional)

    * support forward video recorder while driving
    * Operate via touchscreen
    * USB port, Plug & Play


BMW ID7 style menu


Is this product plug-and-play? Do I need to program or code my BMW? Do I need to buy an external GPS antenna? Can I still check the car info as the OEM screen?
Answer: Yes, it is totally plug-and-play, it has the same plugs and harness as the original BMW system. You do not need to program your car when installation, totally plug and play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.


How do I switch the new Android system to the original BMW CIC/NBT interface?
Answer: Please tap the “Car-infoâ€?icon on the home screen OR long press (3 seconds) MENU button on iDrive to switch to the original CIC/NBT interface.


How do I switch the original BMW CIC/NBT interface to the new Android system?
Answer: Please tap the screen or long press (3 seconds) MENU button on iDrive.


Why does it show “No signalâ€?when tapping “Car-infoâ€?or switching back to the original BMW interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.

BMW LVDS CONNECTOR

Different systems have different LVDS plugs.

BMW LVDS CONNECTOR


Why is there no audio from the new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged into the AUX-IN port on your car.

BMW_AUX-IN_PORT
B. And also, you need to activate the AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.

BMW_AUX-IN_PORT


Why does the Sirius/XM radio, original car computer info and factory camera not display? Why does the AUX-IN volume stuck on zero and not adjustable?
Answer: Please check the fiber optics plug, you need to move it from the original connector to the new connector we provided.

fiber optics CONNECTOR


My car has a factory backup camera, why does it not display when reversing the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
