Radio-Upgrade

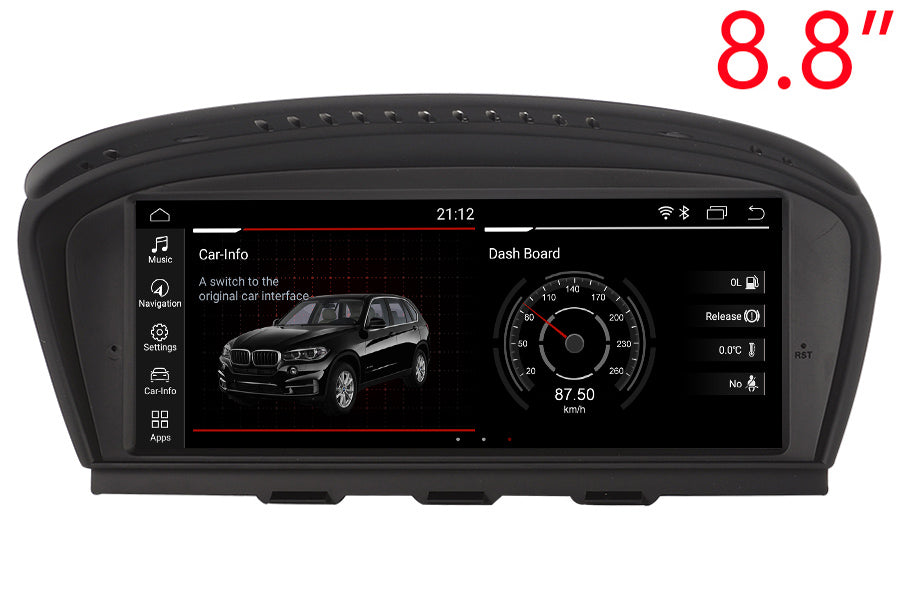

BMW 3(E90)/5(E60)/6(E63) radio upgrade with 8.8 inch screen
Aftermarket GPS Navigation Head Unit is specially designed to replace BMW 5 Series(E60/E61)/6 Series(E63/E64)/M5/3 Series(E90/E91/E92/E93) factory LCD screen unit. It has the same plug and harness as the factory head unit, plug-and-play. This head unit only replaces the original LCD screen unit and retains the factory FM/CD/Sirius unit, so ALL the original BMW car computer/CD/FM/AM/Sirius/XM will still work as before.
Compatible Vehicles:
BMW 5 Series (E60/E61) 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 CCC/CIC system with OEM 6.5"/8" screen
BMW 6 Series (E63/E64) 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 CCC/CIC system with OEM 6.5"/8" screen
BMW M5 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 CCC/CIC system with OEM 6.5"/8" screen
BMW 3 Series E90/E91/E92/E93/M3(2004-2013) CCC/CIC system with OEM 8.8" screen
Note above year range is for your reference only. Send a photo of the dashboard(radio system) to us if you are unsure about fitness.
Attention:
For BMW E60/E61/E63/E64/M5/E90/E91/E92/E93 with/without AUX audio input function, the accessories are different.
1. If your car has an AUX-IN port, then the radio upgrade system sends an audio signal to the OEM BMW head unit through the AUX-IN port. You don't need to buy anything else to make it work. All necessary accessories are included.
2. If your car does not have an AUX-IN port, then there are two solutions:
A. Install this FM Transmitter: https://www.carnaviplayer.com/fm-transmitter-for-car-without-aux-in-p-1245, the radio upgrade system sends the audio signal to the OEM BMW head unit through FM. But the FM transmitter sound quality is not so good, since it transfers the audio through FM Channel, sometimes the sound is interfered
B. Use this AUX IN activator to activate the AUX IN feature on your car: https://www.carnaviplayer.com/bmw-3e905e606e63-2003-2010-ccc-aux-activator-p-1177, We highly recommend this device since the sound quality is much better than FM transmitter.
How do I know what system it is on my BMW?
Factory screen unit
Installation Photo
User Manual: https://www.carnaviplayer.com/docs/user_manual/BMW/BMW_USER_MANUAL_V0.1.pdf
Wiring diagram: https://www.carnaviplayer.com/docs/Installation_instructions/BMW_Wiring_Diagram.pdf
Installation video: https://www.youtube.com/watch?v=23N9nDTUnOk
Installation Guide: https://www.carnaviplayer.com/docs/Installation_instructions/8210.pdf
Operation video: https://www.youtube.com/watch?v=ZyHxMcXZ__Y
Backup camera video: https://www.youtube.com/watch?v=GjXbTAxazYs
| Display | 8.8-inch, resolutions 1280 by 480 | |
| Processor | Qualcomm Snapdragon 8-core 2.0GHz | |
| Memory | 4GB(6GB optional) | |
| Storage | 64GB(128GB optional) | |
| SD/TF card | One 3.0 card slot(Max 128GB) | |
| USB port | USB 3.0 ports(Max 64GB) | |
| Video play | MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc. | |
| Video input | One video input(RCA port)(optional) | |
| Camera input | One camera video input(RCA port) | |
| Microphone | Internal & External Microphone(optional) | |
| Bluetooth | Bluetooth 5.0 module | |
| Network | Wi-Fi/3G(4G) Lte | |
| Audio IC | RK616(Built-in Core module) | |
| GPS receiver | External GPS antenna(include) |
|
|
Navigation * Free maps preload and free updates |
 |
Network * Wi-Fi/3G(4G) Lte |
|
 |
Radio * Remains original BMW AM/FM/Sirius/XM tuner |
 |
Apple CarPlay * Support Apple Carplay with iPhone |
|
 |
Bluetooth * Hands-free phone call* Load the phone book from your mobile phone * Bluetooth music stream A2DP * Internal & External Microphone(optional) * Compatible with iPhone & Android mobile phones |
 |
Android Auto * Support Android Auto with Android phone |
|
 |
Backup Camera (Camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo, and ebook |
|
 |
TV(TV tuner is optional) * Support ATSC/DVB-T/DVB-T2/ISDB-T |
 |
DVR(Camera is optional) * support forward video recorder while driving |
Is this product plug-and-play? Do I need to program or code my BMW? Do I need to buy an external GPS antenna? Can I still check the car info as the OEM screen?
Answer: Yes, it is totally plug-and-play. It has the same plugs and harness as the original BMW system. You do not need to program your car when installation, totally plug and play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.
How do I switch the new Android system to the original BMW CCC/CIC/NBT/EVO interface?
Answer: Please tap the “Car-infoâ€?icon on the home screen OR long press (3 seconds) MENU button on iDrive to switch to the original CCC/CIC/NBT/EVO interface.
How do I switch the original BMW CCC/CIC/NBT/EVO interface to the new Android system?
Answer: Please tap the screen or long press (3 seconds) MENU button on iDrive.
Why does it show “No signalâ€?when tapping “Car-infoâ€?or switching back to the original BMW interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.
Different systems have different LVDS plugs.
Why is there no audio from the new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged into the AUX-IN port on your car.
B. And also, you need to activate the AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.
Why does the Sirius/XM radio, original car computer info and factory camera not display? Why does the AUX-IN volume stuck on zero and not adjustable?
Answer: Please check the fiber optics plug, you need to move it from the original connector to the new connector we provided.
My car has a factory backup camera. Why does it not display when reversing the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
