BMW 1 Series(E81/E82/E87/E88) 2004-2013 Radio Upgrade

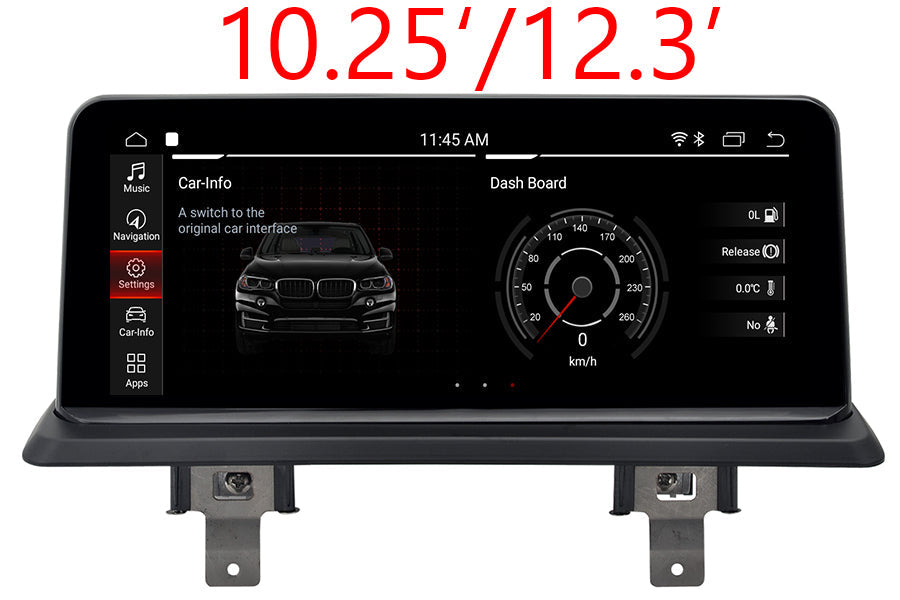

BMW's aftermarket navigation head unit has a 10.25-inch touchscreen. It is specially designed to upgrade the original radio system on BMW 1 Series(E81/E82/E87/E88), which has a storage box or factory screen on the dashboard, plug and play, no need to cut wires, free GPS navigation map preloaded for your country.
Compatible vehicle:
BMW 1 Series(E81/E82/E87/E88) 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
Note above year range is for your reference only. Send a photo of the dashboard(radio system) to us if you are unsure about fitness.
Attention:
1. Our product sends an audio signal to the OEM head unit via the AUX-IN port if your car has an AUX-IN port. You don't need to buy anything else to make it work. All necessary accessories are included.
2. If your car does not have an AUX-IN port, add this FM transmitter to send the audio to the OEM head unit.
3. This product can replace the dashboard's OEM 6.5-inch, 8.8 inches, or storage box.
4. This product fits for left-hand drive and right-hand drive.
How do I know what system it is on my BMW?
Original radio system
Installation photos
If your car has a factory screen and iDrive knob, as shown in the left photo above, you can control the menus of a new interface via the factory iDrive knob.
If there is a storage box and no iDrive knob on your car, then you choose our aftermarket iDrive knob.
| Processor | Qualcomm Snapdragon 8-core 2.0GHz |
| Display | 10.25-inch resolutions 1920 by 720 |
| Memory | 4GB(8GB optional) |
| Storage | 64GB(128GB/256GB optional) |
| SD/TF card | One 3.0 card slot(Max 128GB) |
| USB port | USB 3.0 ports(Max 64GB) |
| Video play | MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc. |
| Video input | One video input(RCA port)(optional) |
| Camera input | One camera video input(RCA port) |
| Microphone | Internal & External Microphone(optional) |
| Bluetooth | 4GB(Ram)/64GB(ROM) has Bluetooth 4.1 module 6GB(Ram)/128GB(ROM) has Bluetooth 5.0 module |
| Network | Wi-Fi/3G(4G) Lte |
| Audio IC | RK616(Built-in Core module) |
| GPS receiver | External GPS antenna(include) |
|
|
Navigation * Free maps preload and free updates |
 |
Network * Wi-Fi/3G(4G) Lte |
 |
Radio * Remains original BMW AM/FM/Sirius/XM tuner |
 |
Apple CarPlay(optional) * Support Apple Carplay with iPhone |
 |
Bluetooth * Hands-free phone call* Load the phone book from your mobile phone * Bluetooth music stream A2DP * Internal & External Microphone(optional) * Compatible with iPhone & Android mobile phones |
 |
Android Auto(optional) * Support Android Auto with Android phones* Wired connection, not wireless * Charge phone while playing |
 |
Backup Camera (Camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo, and ebook |
 |
TV(TV tuner is optional) * Support ATSC/DVB-T/DVB-T2/ISDB-T |
 |
DVR(Camera is optional) * support forward video recorder while driving |
|
|
| User Manual | Installation Guide | Wiring diagram | ||
 |
 |
|
Frequently asked questions:
Is this product plug-and-play? Do I need to program or code my BMW? Do I need to buy an external GPS antenna? Can I still check the car info on the OEM screen?
Answer: Yes, it is plug-and-play. It has the same plugs and harness as the original BMW system. You do not need to program your car when installing. Plug-and-play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.
How do I switch the new Android system to the original BMW CCC/CIC interface?
Answer: Please tap the “Car-infoâ€?icon on the home screen OR long-press the (3 seconds) MENU button on iDrive to switch to the original CCC/CIC interface.
How do I switch from the original BMW CCC/CIC interface to the new Android system?
Answer: Please tap the screen or long press (3 seconds) the MENU button on iDrive.
Why does it show “No signalâ€?when tapping “Car-infoâ€?or switching back to the original BMW interface?
Answer: Please check the LVDS port. Connect the LVDS plug (removed from the OEM screen) to the new screen.
Different systems have different LVDS plugs.
Why is there no audio from the new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged into the AUX-IN port on your car.
B. And also, you need to activate the AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.
Why do the Sirius/XM radio, original car computer info, and factory camera not display? Why does the AUX-IN volume stuck on zero and not adjustable?
Answer: Please check the fiber optics plug. You need to move it from the original connector to the new connector we provided.
My car has a factory backup camera. Why does it not display when reversing the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
