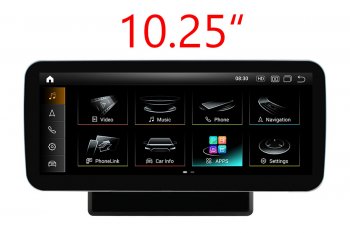

Audi Q5 GPS Navigation Car Stereo (2008-2016)

SKU:

Vehicles: Audi

Product type: Car Stereo

Vendor: Radio-Upgrade

Availability:

$599.00

Add to the wishlist

Aftermarket GPS Navigation Head Unit is specially designed to upgrade Audi Q5(B8) 2008-2017 factory radio system. It has the same plug and harness as original radio,plug and play. This product only replaces the original LCD screen unit and retains the factory FM/CD head unit, so the original Audi car computer/CD/FM/AM/Sirius/XM will still work as before.


Vehicles Supported:

Audi Q5 (Type 8R: 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017)
This product is NOT compatible with Audi SQ5.

Before place the order, you need to know the following items about your car:
1. What is the current radio system on my car?

AUDI MMI SYSTEM

Audi Radio system  Display Software version Fitness
Chorus with MMI 2G Low/Basic 3-inch monochrome display /
NOT FIT
MMI 2G High navigation system 6.5-inch monochrome display  / NOT FIT
Concert/Symphony basic radio(no navigation) 6.5-inch TFT color display / FIT
MMI 3G Low/Basic navigation system 6.5-inch TFT color display resolution 480*240 BNAV FIT
MMI 3G/3G+ navigation system 7-inch TFT color display resolution 800*480 HN+ FIT
MMI 3G High navigation system 7-inch TFT color display resolution 800*480 HNav FIT

Send a photo of the dashboard(radio system) to us if you are not sure about fitness.

2. If your car has MMI system, then you can use the original joystick and touchscreen to operate the new Android screen.
You can still use the originla joystick to operate the original Audi screen. The touchscreen does not operate the original Audi screen.


3. Please press MEDIA button on the raido panel and check audio source options.
If your car has the AUX(External audio input), then you don't need the AMI-AUX cord.
If your car has the AMI, then you need the Audi AMI-AUX adapter cord. Please add it from add-ons box when place the order. Otherwise there will be no audio after install our product.


Factory standard radio(NON-NAVI) FYI

audi a4 a5 b8 factory radio




Installation Photo

aftermarket navigation installed on audi A4

Product demo video




Operating system Android Oreo(8.0)
CPU 64-Bit 8-Core Cortex-A53 1.5GHz
RAM 4GB
Capacity 32GB
Screen 7 inch HD 1024*600 Capacitive Touch Screen
SD/TF card One card slot
USB port Three USB ports
AUX input One set A/V input(RCA port)
Camera One camera input(RCA port)
Microphone  External Microphone
GPS receiver  External GPS receiver

s100 navigation function

   Navigation

    * Free maps preload and free updates
    * Stunning 3D visualization
    * Text-to speech direction
    * Support Google, Waze, Sygic etc.

s100 dvd player

   DVD(device is optional)

    * Support DVD/VCD/CD/MP3/MP4/WMA/
      CD-R/MPEG4/JPG format disc

radio with rds

   Radio

  * Retain the original Audi FM/AM/Sirius/XM radio

apple carplay

   Apple CarPlay(optional)

    * Support Apple Carplay with iPhone
    * Wired connection
    * Charge iPhone while playing
bluetooth phone call a2dp

   Bluetooth

    * Hands free phone call
    * Load phone book from you mobile phone
    * Bluetooth music stream A2DP
    * External Microphone
    * Compatible with iPhone & Android mobile phone
mirror link

   Android Auto(optional)

    * Support Android Auto with Android phone
    * Wired connection
    * Charge phone while playing
backup camera parking radar

   Backup Camera(camera is optional)

    * Display reverse image automatically
      once put in the reverse
    *Sony CCD camera with night vision

sd usb music   play

   SD/USB

    * SD card/USB music, video, photo and ebook
    * Charge phone via USB port

car digital tv receiver

   TV(TV tuner is optional)

    * Support ATSC/DVB-T/DVB-T2/ISDB-T

dvr   for s100 navigation radio

   DVR(camera is optional)

    * support forward video recoder while driving
    * Operate via touchscreen
    * Plug & Play

steering wheel control

   SWC

    * Support original steering wheel control

aux port

   AUX(optional)

    * One channel A/V input for external device
 google play

   Google Play

    * Android Market provide numerous apps download,
      such as Skype/MSN/Youtube/Twitter/Facebook
      free download as much as you need
network for s100 navigation radio

   Network

    * Built-in WiFi dongle


Main Menu

Apps Menu
Home Menu Apps Menu
Bluetooth phone call   Bluetooth Music
Bluetooth Phone Call
  Bluetooth Music
Music Player   Apple CarPlay
Music Player
  OBD II
Apple CarPlay   Apple CarPlay
Apple CarPlay   Android Auto





User Manual Head unit Installation Guide Connection map
Backup camera Wiring diagram

Frequently asked questions:

Is this product plug and play? Do I need to program or code my Audi? Do I need to buy external GPS antenna? Can I still check the car info as the OEM screen?
Answer: Yes, it is totally plug and play, it has the same plugs and harness as original Audi system. You do not need to program your car when installation. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Audi car info as before.


How do I switch the new Android system to the original Audi interface?
Answer: Please tap “Car-info” icon on the home screen to switch to original Audi interface.


How do I switch the original Audi interface to new Android system?
Answer: Please tap the screen.


Why it shows “No signal” when tap “Car-info” to switch back to original Audi interface?
Answer: Please check the CAR-LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.

AUDI LVDS CONNECTOR

AUDI LVDS CONNECTOR

AUDI LVDS CONNECTOR


Why there is no audio from new Android system?

Answer:
1. Please press MEDIA button on the raido panel and check audio source options.Make sure the External Audio input(AUX) is activated.

MEDIA BUTTON

Note if your car has the AMI option instead of AUX, then you need to plug the Audi AMI-AUX cord(this cord is sold separately) to AMI port in glove box on passenger side.After plug this cord, the AMI will change to AUX on the screen.

Audi AMI-AUX cord

2. Then tap the screen to Android screen. You should be able to hear sound.


Where should I mount the main metal box? The original LVDS cord is too short to mount it in the glove box?

Please take apart the glove box on passenger side and there is a hole allows you to put the metal box hide behind the screen. Then the LVDS cord is long enough.

Audi navigation system upgrade


Why it does not power off when I shut down the car?
Answer: Please make sure the CANBUS connector is connected behind the climate control panel as shown below.

Audi canbus connector
