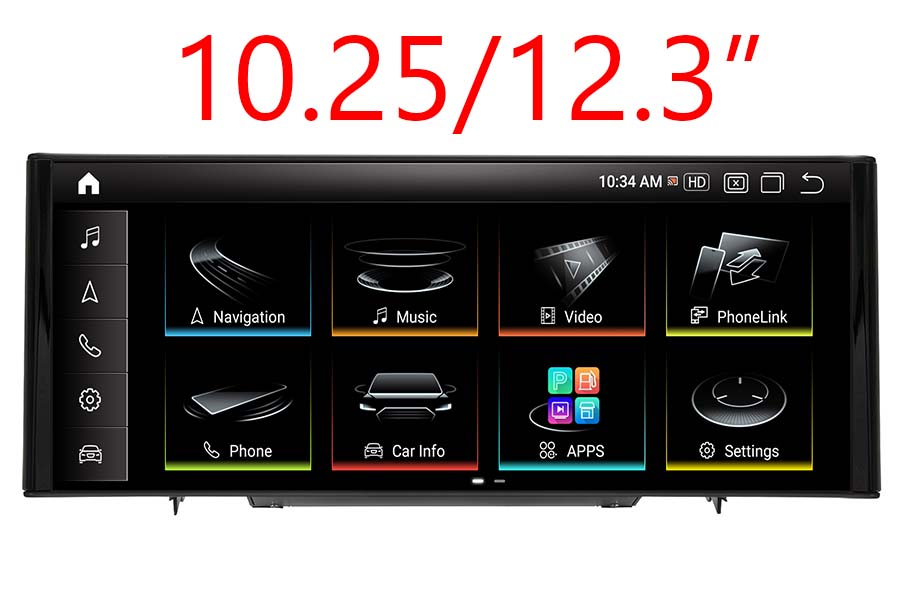

Audi Q3 2011-2018 Aftermarket Radio Upgrade with 10 inch screen

Radio-Upgrade

Audi Q3 2011-2018 Aftermarket Radio Upgrade with 10 inch screen

Sale price$599.00 USD Regular price$699.00 USD
Save $100.00

Shipping calculated at checkout

CarPlay/Android Auto:No Thanks
Backup Camera:No Thanks
Front In-Dash Camera:No Thanks

Aftermarket GPS Navigation Head Unit is specially designed to upgrade Audi Q3(8U) 2011-2018 radio system. It has the same plugs and harness as the original radio, plug-and-play. However, this product only replaces the actual LCD screen unit and retains the factory Audi FM/CD unit, so the original Audi car computer/CD/FM/AM/Sirius/XM will still work as before.


Compatible vehicles:
Audi Q3(8U) 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 with RMC/3G+/MIB
Send a photo of the dashboard(radio system) to us if you are unsure about fitness.



1. Note the screen is fixed. It does not flip down as the original Audi A3/A6/A8/Q3 display screen.



2. What is the current radio system on my car? Please select the correct radio version of your vehicle from the add-ons box when placing the order so we can send the right items for your vehicle.

Audi Q3 2011-2018 Aftermarket Radio Upgrade

Send a photo of the current version of the radio system to us if you are unsure about fitness.



3. If your car has the AUX(External audio input) audio option, you don't need the AMI-AUX cord.
If your car has the AMI audio option(External audio input), you need to use the Audi AMI-AUX adapter cord. After plugging this cord, the AMI will change to AUX on the screen.
Audi Q3 2011-2018 Aftermarket Radio Upgrade

Audi Q3 2011-2018 Aftermarket Radio Upgrade

Audi Q3 2011-2018 Aftermarket Radio Upgrade


Audi Q3 2011-2018 Aftermarket Radio Upgrade


Audi Q3 2011-2018 Aftermarket Radio Upgrade


Installation instructions: https://www.carnaviplayer.com/docs/Installation_instructions/AD-1313.pdf


CPU 64-Bit 8-Core Cortex-A53 1.8GHz
RAM 4GB
Capacity 64GB
Display 10.25"(12.3" optional) 1920*720 Capacitive Touch Screen
Network Wi-Fi & 4G LTE
USB port Two USB ports
Camera Input One camera input(RCA port)
Microphone  Internal and External
GPS receiver  Built-in GPS module and external GPS antenna

s100 navigation function

   Navigation

    * Free maps preload and free updates
    * Stunning 3D visualization
    * Text-to-speech direction
    * Support Google, Waze, Sygic, etc.

s100 dvd player

   CD

    * Remain the factory AUDI CD player

radio with rds

   Radio

  * Remains the original AUDI AM/FM/Sirius/XM/DAB tuner
  * Support external DAB+ radio(tuner is optional)

apple carplay

   Apple CarPlay

    * Support Apple Carplay with iPhone

bluetooth phone call a2dp

   Bluetooth

    * Hands-free phone call
    * Load the phone book from your mobile phone
    * Bluetooth music stream A2DP
    * External Microphone
mirror link

   Android Auto

    * Support Android Auto with Android phone
backup camera parking radar

   Backup Camera (aftermarket backup camera is optional)

    * Display reverse image automatically when put in the reverse
    * Sony CCD camera with night vision
    * Remain the factory AUDI backup camera

sd usb music   play

   USB

    * USB music, video, photo, and ebook
    * Charge phone via USB port

car digital tv receiver

   TV(External TV tuner is optional)

    * Support ATSC
    * Support DVB-T/DVB-T2
    * Support ISDB-T

dvr   for s100 navigation radio

   DVR(External Camera is optional)

    * support forward video recorder while driving
    * Operate via touchscreen
    * Plug & Play

steering wheel control

   SWC

    * Remain the original Audi steering wheel control

aux port

   AUX

    * One channel A/V input for external device
 google play

   Google Play

    * Android Market provides numerous apps download,
      such as Skype/MSN/Youtube/Twitter/Facebook
      free download as much as you need
network for s100 navigation radio

   Network

    * Wi-Fi/4G LTE


Audi Q3 2011-2018 Aftermarket Radio Upgrade


Is this product plug-and-play? Do I need to program or code my Audi? Do I need to buy an external GPS antenna? Can I still check the car info on the OEM screen?
Answer: Yes, it is plug-and-play. It has the same plugs and harness as the original Audi system. You do not need to program your car when installation. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Audi car info as before.


How do I switch the new upgrade system to the original Audi interface?
Answer: Please tap the "Car Info" icon on the home screen to switch to the original Audi car computer screen.


How do I switch the original Audi screen to the new upgrade system?
Answer: Please tap the screen.


Why it shows a black screen with no signal when tapping "Car Info" to switch back to the original Audi car computer screen?
Answer: Please check the CAR-LVDS port. Make sure you connect the original LVDS plug (removed from the initial screen) to the CAR-LVDS port on the new screen.

Audi Q3 2011-2018 Aftermarket Radio Upgrade


Why is there no audio from the new upgrade system?

Answer:
1. Please press the MEDIA button on the radio panel and check the audio source options. Make sure the External Audio input(AUX) is activated.

Audi Q3 2011-2018 Aftermarket Radio Upgrade

Audi Q3 2011-2018 Aftermarket Radio Upgrade

Note that if your car has the AMI option instead of AUX, you need to plug the Audi AMI-AUX cord(this cord is sold separately) into the AMI port in the glove box on the passenger side. After filling this cord, the AMI will change to AUX on the screen.

Audi Q3 2011-2018 Aftermarket Radio Upgrade

2. Then tap the screen to access the new upgrade system. You should be able to hear sound.
