Audi A6(C6) RHD 2004-2011 Aftermarket Radio Upgrade

Radio-Upgrade

Audi A6(C6) RHD 2004-2011 Aftermarket Radio Upgrade

Sale price$599.00 USD Regular price$699.00 USD
Save $100.00

Shipping calculated at checkout

CarPlay/Android Auto:No Thanks
Backup Camera:No Thanks
Front In-Dash Camera:No Thanks

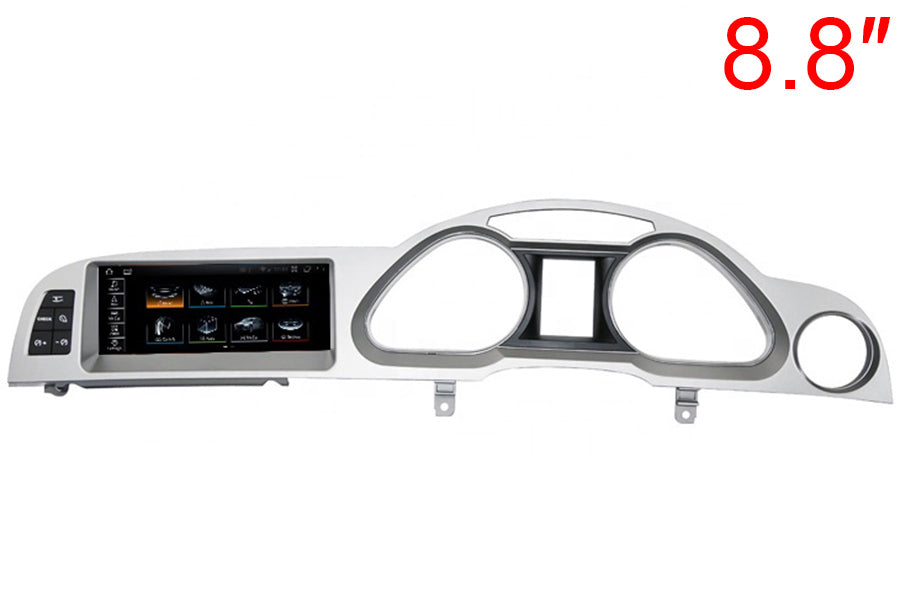

Aftermarket GPS Navigation Head Unit is specially designed to upgrade Audi A6(C6) RHD 2004-2011 radio system. It has the same plug and harness as the original radio, plug-and-play. This product only replaces the original LCD screen unit and retains the factory FM/CD unit, so the original Audi car computer/CD/FM/AM/Sirius/XM will still work as before.


Compatible vehicles:


Audi A6(C6) RHD 2004 2005 2006 2007 2008 2009 2010 2011


Note above year range is for your reference only. Send a photo of the dashboard(radio system) to us if you are unsure about fitness.

Attention:
1. If your car has the AUX(External audio input) audio option, then you don't need the AMI-AUX cord.
2. If your car has the AMI audio option instead of the AUX(External audio input) audio option, then you need the Audi AMI-AUX adapter cord. Please add it from the add-ons box when placing the order.
3. If your car does not have AUX or AMI. But it has fiber optic cable. Please add the MOST audio adapter.


Factory standard radio FYI

audi q7 factory radio


CPU   64-Bit 8-Core Cortex-A53 1.5GHz
RAM   4GB
Capacity   64GB
Display   10.25" Capacitive Touch Screen
Network   Wi-Fi & 4G LTE
SD card   One micro sd card slot
USB port   Three USB ports
Camera Input   One camera input(RCA port)
Microphone    External
GPS receiver    Built-in GPS module and external GPS antenna

s100 navigation function

   Navigation

    * Free maps preload and free updates
    * Stunning 3D visualization
    * Text-to-speech direction
    * Support Google Maps, Waze, Sygic, etc.

s100 dvd player

   CD

    * Remain the factory AUDI CD player

radio with rds

   Radio

  * Remains original AUDI AM/FM/Sirius/XM tuner
  * Support DAB+ radio(tuner is optional)

apple carplay

   Apple CarPlay

    * Support Apple Carplay with iPhone

bluetooth phone call a2dp

   Bluetooth

    * Hands-free phone call
    * Load the phone book from your mobile phone
    * Bluetooth music stream A2DP
    * External Microphone
    * Compatible with iPhone & Android mobile phones
mirror link

   Android Auto

    * Support Android Auto with Android phone
backup camera parking radar

   Backup Camera (Camera is optional)

    * Display reverse image automatically
      once put in the reverse
    * Sony CCD camera with night vision
    * Remain the factory AUDI backup camera

sd usb music   play

   SD/USB

    * SD card/USB music, video, photo, and ebook
    * Charge phone via USB port

car digital tv receiver

   TV(TV tuner is optional)

    * Support ATSC
    * Support DVB-T/DVB-T2
    * Support ISDB-T

dvr   for s100 navigation radio

   DVR(Camera is optional)

    * support forward video recorder while driving
    * Operate via touchscreen
    * Plug & Play

steering wheel control

   SWC

    * Remain original steering wheel control

aux port

   AUX

    * One channel A/V input for external device
 google play

   Google Play

    * Android Market provides numerous apps download,
      such as Skype/MSN/Youtube/Twitter/Facebook
      free download as much as you need
network for s100 navigation radio

   Network

    * Wi-Fi+4G LTE


Audi A6(C6) RHD 2004-2011 Aftermarket Radio Upgrade


Product demo video: https://www.youtube.com/watch?v=M83AWZLVKwI
User Manual: http://www.carnaviplayer.com/docs/user_manual/Audi/User_Manual.pdf
Head unit Installation Guide: http://www.carnaviplayer.com/docs/Installation_instructions/8665.pdf
Connection map: http://www.carnaviplayer.com/docs/Installation_instructions/8665_connection_map.pdf
Backup camera Wiring diagram: http://www.carnaviplayer.com/docs/Installation_instructions/Audi-Backup-camera-wiring-diagram.pdf


Is this product plug-and-play? Do I need to program or code my Audi? Do I need to buy an external GPS antenna? Can I still check the car info as the OEM screen?
Answer: Yes, it is totally plug-and-play. It has the same plugs and harness as the original Audi system. You do not need to program your car when installation. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Audi car info as before.


How do I switch the new upgrade system to the original Audi interface?
Answer: Please tap the “Originalâ€?icon on the home screen to switch to the original Audi interface.


How do I switch the original Audi interface to the new upgrade system?
Answer: Please tap the screen.


Why does it show a black screen with no signal when tapping “Originalâ€?to switch back to the original Audi interface?
Answer: Please check the CAR-LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.

AUDI LVDS CONNECTOR

AUDI LVDS CONNECTOR

AUDI LVDS CONNECTOR


Why is there no audio from the new upgrade system?

Answer:
1. Please press the MEDIA button on the radio panel and check the audio source options. Make sure the External Audio input(AUX) is activated.

MEDIA BUTTON

Note if your car has the AMI option instead of AUX, then you need to plug the Audi AMI-AUX cord(this cord is sold separately) into the AMI port in the glove box on the passenger side. After plugging this cord, the AMI will change to AUX on the screen.

Audi AMI-AUX cord

2. Then tap the screen to access the new upgrade system. You should be able to hear sound.


Where should I mount the main metal box? The original LVDS cord is too short to mount it in the glove box.

Please take apart the glove box on the passenger side, there is a hole that allows you to put the metal box hide behind the screen. Then the LVDS cord is long enough.

Audi navigation system upgrade
